BC-230-PB : Testeur Profibus PA : Pour les Zones ATEX et non-ATEX

BC-230-PB

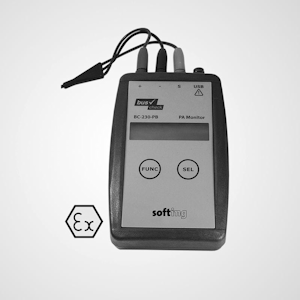

Le testeur PROFIBUS PA ( BC-230-PB) est un outil pratique et indispensable pour les tests de réseaux PROFIBUS PA ( Zone ATEX et non ATEX )

Test du bus PA, facile et rapide

Le  moniteur de diagnostic est un outil polyvalent et indispensable pour la mesure des réseaux Profibus PA. C’est auss un produit ATEX, ce qui en fait un appareil utilisable en zone a risque. Pas de besoin de batterie ni de source électrique externe.

Général

Application universelle pour ce testeur profibus PA ( BC-230-PB )

  • Test du bus physic
  • Verification de la stabilité entre les différents devices
  • Outil universel pour l’installation, la mise en service, la documentation, la maintenance préventive et le diagnostic

Très simple d’utilisation

  • Outstanding ease of use based on display and two function buttons ▪ Clear classification of test results as either OK or BAD
  • Ideal choice even for less experienced users

Test de bus totalement automatique

  • Automatically powered by fieldbus and start of segment testing without operator intervention after attachment to PROFIBUS PA network
  • Information in plain text, if measured data exceeds tolerance limits
  • Measurement of segment voltage as well as average noise and peak noise for three frequency ranges
  • Reliable detection of short circuits between individual signal wires and cable shield
  • Detection of all frame retransmissions and all devices added or dropped during bus operation at field device level
  • Determination of current and lowest signal levels of all devices
  • No PC or notebook needed for testing the bus
  • Internal storage of test data for later transfer to PC
  • Detailed test reports in Microsoft Excel or text format

Details téchnique

put voltage:Fieldbus mode: 8 to 32 VDC, USB mode: 4.1 to 5.5 VDC
Max. input current:Fieldbus mode: 10 mA *, USB mode: 30 mA
Power dissipation:Fieldbus mode: max. 320 mW (at 32 VDC), USB mode: max. 165 mW (at 5.5 VDC)
Operating temperature:–20 to +50 °C **
Dimensions:146 x 88 x 28 mm
Weight:378 g
Case material:ABS
DC voltage measurement range:8 to 32 VDC ± 0.5 VDC
Signal level measurement range:0.12 to 2 Vpp ±10% ±0.025 Vpp
LF noise measurement range:50 Hz to 4 kHz, 0 to 1000 mVpp ±15% ±25 mVpp ***
FF noise measurement range:9 kHz to 40 kHz, 0 to 1000 mVpp ±10% ±25 mVpp ***
HF noise measurement range:90 kHz to 350 kHz, 0 to 250 mVpp ±20% ±25 mVpp ***
ConformityCE, FCC
Hazardous area approvalsFM USA and Canada:
—Class I Division 2 Groups A, B, C and D T4
—Class I Zone 2 Group IIC T4
—Class I Division 1 Groups A, B, C and D T4
—Class I Zone 0 and 1 Ex/AEx ia IIC T4
ATEX Ex ia IIC T4
ATEX Ex nL IIC T4
ATEX Ex ic IIC T4
Data transfer to PCVia supplied PC software for Windows 2000, XP and VISTA, Windows 7 (32/64 bit) and USB interface version 1.1 or 2.0
*  In  fieldbus  mode  the BC-230-PB  is powered by the  fieldbus and draws approximately 9.4 mA of current from the segment (depending on bus voltage and ambient temperature).
**  Display update speed is impaired below –10°C.
*** Vpp = Volts peak-to-peak; excessive noise adjacent to the fieldbus frequency (FF) band will prevent the BC-230-PB from reading the fieldbus data and thus reduce functionality.

Références

BC-230-PBDiagnostic Monitor for PROFIBUS PA

Scope of Delivery

HardwareDiagnostic Monitor for PROFIBUS PA (BC-230-PB), connection cables, carrying case
SoftwarePC software (in English) on CD-ROM
DocumentationManual (in English), certificates (in English)

Additional Products and Services

PB-LSZ-CHB3Digital fieldbus leakage current clamp for locating EMC problems, 40 Hz … 1,000 Hz, Min/Max, Data Hold, measuring cables, supplied in handy case

Formation

Pour toute demande, nous consulter

Ce produit fait partie de  la famille des “Process automation”. Afin de connaitre notre gamme complete de produits, vous pouvez télécharger notre brochure :  Process Automation.
