Ateva Technologies

PROFINET

IEN-8648-PN

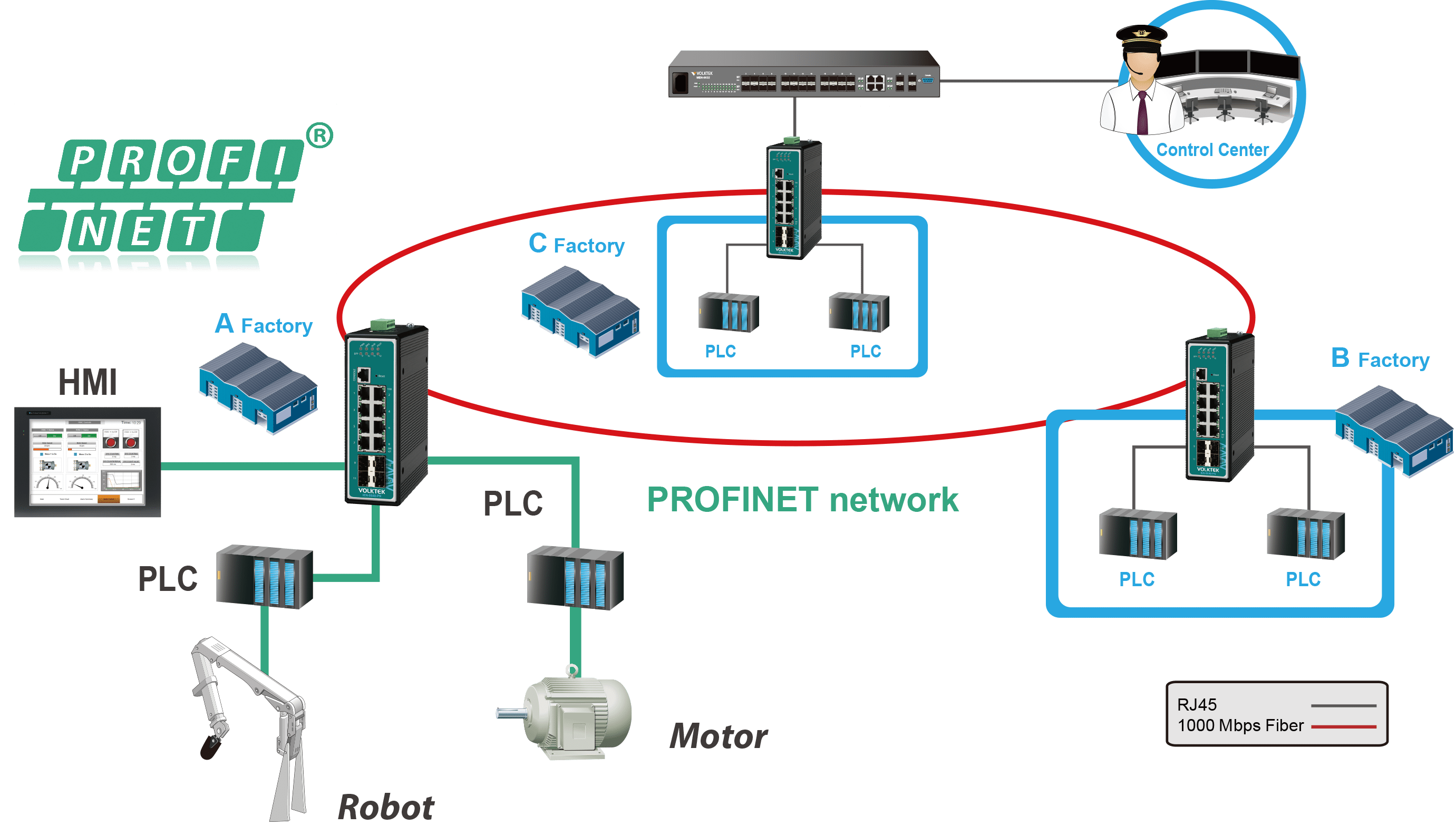

Managed 8 x 10/100/1000 RJ45+ 4 x GbE SFP Industrial Switch, PROFINET Approval, Aluminum

The PROFINET certified Industrial Ethernet switches enable real-time communication for automation control. PROFINET bypasses the network layer for some specific application to provide real-time communication. Volktek comes up with the openstandard PROFINET certified industrial switches for real-time motion control of industrial instruments and factory automation. In a high precision control environment, the data exchange rate must be faster to meet the speed requirements. Therefore, the PROFINET certified switches can transmit the real-time and Non-real-time data in 10 and 100ms, respectively.

Général

Robust Switch Performance
IEN-8648-PN is built with IP30 aluminum case protection, surge and ESD protection to deliver robust performance and withstand extreme conditions in Industrial environments. The SFP ports support 1000Mbps for high bandwidth transmissions and the SFP DDM feature enables service providers to monitor SFP parameters. In case of any abnormal hardware condition, the switch automatically sends warnings through email and relay output with real-time alarm messages. This assists the system administrators to immediately react to emergency events and diagnose the faults more efficiently for smoother network operations.

Port-based VLAN, IEEE 802.1Q VLAN, GARP and GVRP to ease network planning
Planning, designing and managing complex networks is now simplified with IEN-8648-PN. The switch supports VLANs which segment large networks into smaller parts and organize them into separate broadcast domains. This helps the administrators to control the traffic patterns, limit broadcast traffic and reduce broadcast storms. As the network expands, to provide control of increased VLANs, the switch offers GVRP feature, an application protocol of GARP, which registers and deregisters devices and its ports depending on their availability. This feature prevents unnecessary network traffic transmitted by unregistered users and simplifies the network design irrespective of its size.

Network Redundancy
Volktek’s industrial switches redundant ring architecture enhances network reliability and make them ideal for deploying secure automation network systems in tough outdoor industrial environments, such as ITS, maritime, mining, and manufacturing systems. New generation of Volktek Xpress Ring delivers a various choice of ring topologies, including Xpress Ring, Dual Xpress Ring, Dual Homing, in rapid recovery time (<20ms @ 250 switches). G.8032v2, Ethernet Ring Protection Switching (ERPS) protocol,provides protection for Ethernet traffic in a multiple ring topology with fast recovery time (less than 50ms).

Redundant Power system
Mission-critical industrial applications need to operate without any interruptions because even a minimum network downtime can hugely impact the overall output. Providing continuous power as well as data to such applications is now made easy with IEN-8648-PN’s redundant power system. The switch is designed with standard industrial terminal block for redundant power. In case the primary power supply fails, the secondary power source will enable the switch to provide continuous service.

Industrial Ethernet Connector

Industrial grade RJ45 Connector for your Industrial Ethernet Applications

Industrial RJ45

The industrial-grade metal housing provides the necessary ruggedness so that the plug can be used in many industrial applications.
To save the user time in wiring, the RJ45 connector can be assembled in a single step using the fast connection technology EasyConnect®. Solid single wires and strands can be used. The color-coded contact elements also help avoid connection errors. In addition, the RJ45 connectors are designed in protection class IP20 and for transmission rates up to 1000 Mbps.

  • Color-coded contact elements help to avoid connection errors
  • Transmission rates up to 1000 Mbps
  • Tool-free installation
  • EasyConnect® RJ45 connection (IDC) for industrial applications
  • Suitable for cables up to Cat.6
  • 180° axial cable outlet

Détails techniques

General information
Order numberATV-HZ-700-901-1BB12

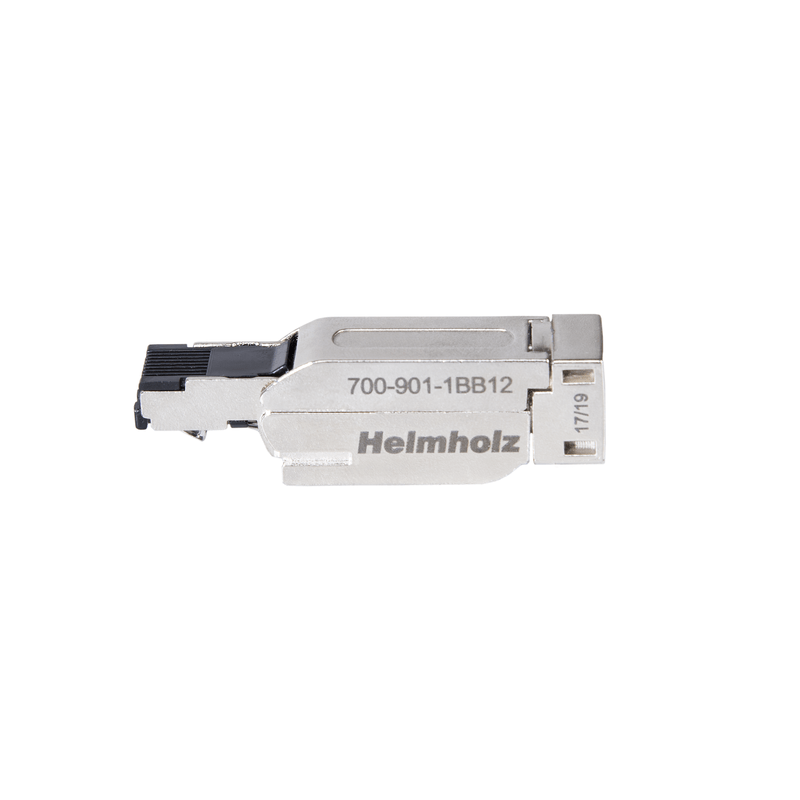

Article nameIndustrial ethernet connector, RJ45, EasyConnect®, 180°
Scope of deliveryIndustrial ethernet connector, installation instructions
Dimensions (DxWxH)14 x 16 x 56 mm
WeightApprox. 30 g
Ethernet interface
Number1
ProtocolEthernet
Transmission rate10/100/1000 Mbps
ConnectionRJ45 socket
Connectors
Cable outlet180°
Connector typeEasyConnect®
Connectible cablesIndustrial ethernet cable 8 pin, up to Cat.6
Cable cross-section8 x 24 AWG
Maximum outside diameter8 mm
Ambient conditions
Ambient temperature-20°C … +70°C
Transport and storage temperature-40 °C … +80 °C
Relative air humidity95 % r H without condensation
Pollution degree2
Protection ratingIP20
CertificationsCE, UL
CE
RoHSYes
REACHYes

Numéro de référence

Référence produit :  ATV-HZ-700-901-1BB12

Memory card S7-1200/S7-1500

Memory Cards for S7-1200/S7-1500

S7 Memory Card S7-1200 S7-1500

The memory card for S7-1200*/S7-1500* controllers of Siemens AG.

Available with 4Mb / 12 Mb/ 24 Mb /256  Mb and 2 Gb

Détails techniques

General information
Article nameMemory Card, for S7-1200/S7-1500 series
Scope of deliveryMemory Card
Storage volumedepending on size selected
Application OptionsCPU 1200
CPU 1500

Numéro de référence

Reference Order :

  • 24Mb :    700-954-8LF03
  • 256 Mb : 700-954-8LL03
  • 2 Gb :     700-954-8LP03

NetXpertXG

Test vos cables Ethernet et vérifie/garantie la vitesse limite de ces cables.

Les vitesses des ” Wireless Access points” dépassent souvent, les vitesses de cablage installé dans le réseau . Est il possible que vos cables gèrent des vitesses bien au delà de leurs spécifications ? Est il possible que vos cables CAT5e ou CAT6 puissent atteindre des vitesses de 1GBits/S voire 10Gbits/s

Pour le savoir, une simple fonction sur le NetXpert XG, permettent d’effectuer 3 tests. Effectue un test de vitesse en envoyant 1Gb/s de données via votre cable ( Test BERT ) et il prouvera si celui ci fonctionera au-delà  des spécifications et suivra la vitesse des “Access Points” installés

Le NetXpert est le seul testeur de cables et gestionnaire de réseaux actif a effectuer  un test de taux d’erreurs sur les bits ( BERT ) , un test de signal Signal/bruit ( SNR) et retard de vitesse de 1Gb/s, 5Gb/s ou 10Gb/s en appuyant sur une touche. Vous pouvez maintenant effectuer des tests de débit en temps réel pour valider vos cables jusqu’à 10Gb/s.

Test le taux d’erreurs, le bruit et le delai de propagation instantanément

En effectuant un test de taux d’erreur sur les bits ( BERT ) et selon les normes IEE802.3an, le NetXpert XG vous certifie ou non, une transmission de données sans erreur jusqu’à 10Gb/s

Test automatique avec une “touche” comprends le rapport Signal/bruit ( SNR) et le décalage temporel, qui peuvent avoir un impact significatif sur la transmission Gigabit

Le rapport “signal/bruit” vérifie que le bruit est suffisamment faible et que le signal est suffisamment élevé pour une transmission fiable. Le “delai de propagation” indique un décalage entre les paires de fils. Un retard excessif peut entrainer un sérieuse dégradation de la transmission et donc de la performance.

Les 3 mesures fondamentales pour déterminer si une transmission est fiable ou non, peuvent être effectuées à l’aide d’une seule touche. La mesure faite, vous pouvez réitérer immédiatement à l’aide de cette unique fonction. Chaque mesure est archivée et est fournis à un rapport de synthèse final au format PDF, CVS ou XML

Général

The cable qualifier that is defining a new category — the cable project qualifier

If you are a cable installer, network owner, network builder, or system integrator, you’ll be excited to hear that NetXpert XG includes a project editor and auto test generator for up to 1000 cables, and test reports you can keep for your records or leave with your customer.  Once the tests are created, plug in the cable, click test, and NetXpert XG starts testing the cable to IEEE 802.3 standards to prove the speed of your cable.  Not only do you get a wiremap and cable length, NetXpert XG tests BERT, SNR, Delay Skew, distance to opens, shorts, or miswires.  As a bonus you get active network tests for copper, fiber, and wireless.  And, with 2 NetXpert XG local units, you can test fiber cables.

Cable Project Qualifier

  • Use the project editor, cable test editor, test label editor to pre-configure your cable testing projects
  • Press test to automatically sequence up to 1000 cable tests from the local or remote device to increase cable testing efficiency when working alone
  • Test data cabling for IEEE 802.3 compliance at data rates up to 10 Gb/s (BERT)
  • Determine signal-to-noise ratio (SNR) for compliance up to 10 Gb/s
  • Measure delay skew for compliance up to 10Gb/s
  • Measure length of cable with TDR and capacitance measurements for highly accurate test results and easier troubleshooting
  • Full-color wire map shows distance to open, distance to short, miswires, split pairs, and shield on a color graphical display
  • Save test results and generate standards-based measurement reports providing “Pass/Fail” indication in pdf, csv, or xml format

Perform active network management

  • Support for IPv4 and IPv6
  • Discover your network and see the connected network devices
  • Identifies defective PoE switches with a PoE load test
  • DHCP test
  • Ping lists can be defined and saved for later use
  • LLDP/CDP detection and analysis
  • Identifies VLANs present in your network
  • Data transfer from the tester to the PC using USB stick, wireless, or bluetooth connectivity

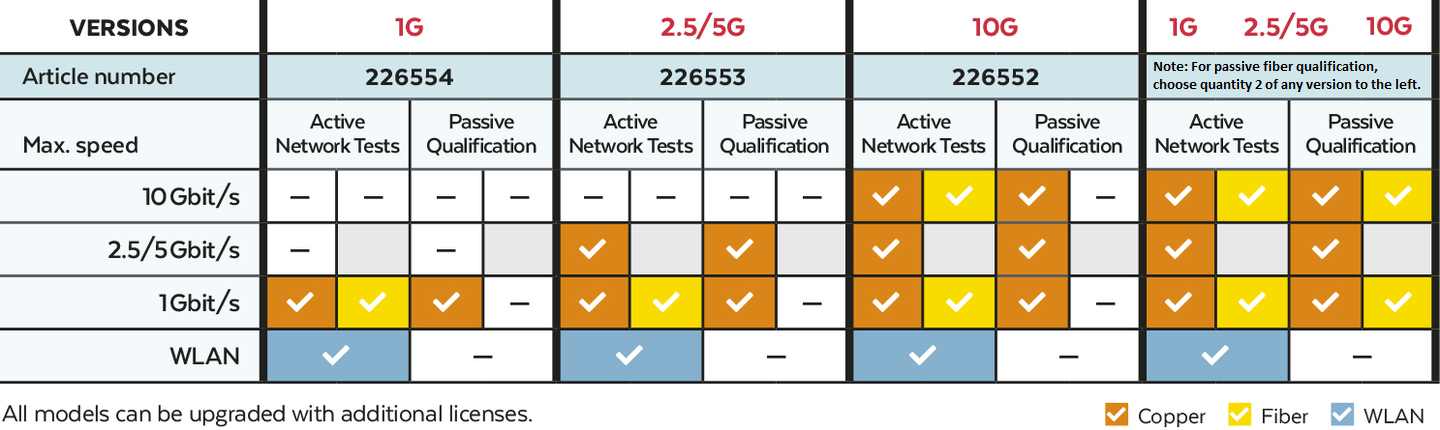

Details Techniques

Length Measurement TechnologyTime-Domain Reflectometry (TDR) and capacitance
Cable MeasurementsCable Testing and ID: up to 1,000 ft (305 m)
Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m)
Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft (30 cm))
Distance to fault: 0 to 656 ft (200 m) ± (5% + 3ft (1m))
Supports 8 wiremap remotes (RJ 45) and 24 RJ-45 ID only
remotes
Power over Ethernet (PoE)Test supports IEEE 802.3af PoE (Type 1, max 15.4W),
IEEE 802.3at PoE+ (Type 2, 30W) and 802.3bt PoE++ (Type 3, 60W)
Future proofed for IEEE 802.3bt Type 4 100W higherpower PoE
Active EthernetNetwork and test support by interface:
Copper RJ-45 interface –100/1,000/2,500/5,000/10,000 Mb/sec link speeds
Fiber SFP+ #1 interface supports 10Gb/sec link speed
Fiber SFP+ #2 interface supports 1Gb/sec link speed
WiFi 802.11 a/b/g/n 2.4 Ghz WiFi and Bluetooth
Maximum VoltagesMaximum voltage that can be applied to any 2 connector pins without causing damage to the tester:
RJ-45: 60 VDC or 50 VAC
Save Test ResultsStores virtually unlimited cable or network tests with user defined names per project
Tone GenerationTone Frequencies: 730 Hz and 1440 Hz
LanguagesEnglish, German, French, Spanish
BatteryLi-Ion, 7.2 VDC, 3.1A-hr (typical)
Battery Life at 10Gb: 5 hrs minimum, 24 hrs stand-by
TemperatureOperating: 14 to 140° F (-10 to 60°C)
Storage: -22 to 158°F (-30 to 70°)
Humidity10 to 90% non-condensing
EnclosureInjection molded plastic
Display7″ Color TFT-LCD capacitive touch display,
1024 x 600 resolution (WSVGA)
Size245 x 177 x 73 mm (main unit)
130 x 177 x 55 mm (Active Remote)
Weight with Battery2.6lbs (1.2 kg) main unit
1.3lbs (0.6 kg) Active Remote

Logiciel datacheck analyzer : pour diagnostic Ethernet industriel

Analyzer IE / PRO

Software for Mobile Diagnostics and Acceptance Testing of Industrial Networks

Analyzer IE / PRO is a comprehensive software solution for acceptance testing and efficient troubleshooting of Ethernet-based industrial communication. In a PROFINET environment, the mobile diagnostic tool generates standardized acceptance reports in accordance with the recommendations of PROFIBUS & PROFINET International (PI), making it an easy-to-use product that is tailored to the needs of plant suppliers, maintenance personnel as well as service providers.

Général

Comprehensive Functionality

  • Diagnostics list, error statistics, network statistics
  • Enhanced flexibility by supporting online as well as offline mode
  • Generation, analysis and handling of diagnostic data such as graphical topology, inventory list and reference measurements, also for standard Ethernet components (eg PCs, camera systems)

Automated Generation of Acceptance Test Documents

  • Time saving by automatically created test reports
  • Flexible definition of acceptance criteria
  • Transparent reporting by following PI guidelines

Tool Addressing Complete Plant Lifecycle

  • Data on network configuration, network communication and diagnostic messages
  • Error identification for effective troubleshooting (e.g. based on inventory list of network devices)
  • Chance to support exchange of general project information between end users, EPC contractors, system integrators and maintenance service providers
  • Seamless integration with Softing diagnostics per-manent monitoring solutions TH SCOPE and TH LINK

Détails techniques

Technical Data
Functionality
  • Analysis of device logs
  • Live list, statistics, inventory
  • Topology and trend analysis
  • GSDML file support, plaintext messages in diagnostic list
  • Acceptance measurements and acceptance reports
  • Reference comparison
  • Configurable time intervals for automated export of inventory and topology data
  • Data export via Excel
  • Configurable Blacklist feature for robust operation
  • Optional (Analyzer PRO): Telegram analysis: jitter, refresh interval, load ratio
Supported ProtocolsPROFINET, EtherNet/IP, Modbus TCP
Interfaces
  • SNMP Agent
  • OPC UA Server
System RequirementsAdobe Reader 8 or higher for reading the documentation and for printing the topology
Supported Operating SystemsWindows 7, Windows 8.1, Windows 10
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Network AccessData collection through TH LINK PC (PROFINET, EtherNet/IP, Modbus TCP)
Demo VersionFull TH SCOPE functionality can be used for free for 30 days after installation
LicensingSoftware or hardware key

Numéro de référence

Scope of Delivery
SoftwareAnalyzer IE
LicenseSoftware key (bound to PC) or hardware key
HardwareprofiTap: Network tap for telegram analysis operation, optional (Analyzer PRO)
DocumentationInstallation manual, user manual, release note
Order Numbers
LRA-JY-003041Analyzer IE (software key)
LRL-JY-003042Analyzer IE (hardware key)
KPL-JY-003043Analyzer PRO
Additional Products and Services
GEA-JN-003006TH LINK PROFIBUS
GDA-JA-003034TH LINK PROFINET
GDA-JY-003037TH LINK Industrial Ethernet
LRA-JY-003028TH LINK PC Industrial Ethernet
TRA-PB-TECHTraining “PROFIBUS Technology”
TRA-PB-TSTraining “PROFIBUS Troubleshooting with exam to Certified PROFIBUS Installer”
TRA-PN-CERTINSTTraining “PROFINET Acceptance and Commissioning”
TRA-PN-CERTENGTraining “PROFINET Technology graduated as Certified PROFINET Engineer”
TRA-PN-TOOLSOn-site training: PROFINET tools

Fomation

Pour les formations, veuillez nous contacter

Les personnes intéressées par ce produit, peuvent être aussi interessées par :



pnGate PA

Passerelle PROFINET vers PROFIBUS PA (pnGate PA)

Intégration de segments PROFIBUS PA dans un sytème de contrôle PROFINET

  • Ré-utilsez vos power Conditioner dans une technologie plus avancée ?
  • Pas de segments PROFIBUS DP intermédiaires.
  • Préparé pour une intégration standard et pour les outils d’administration

Aperçu

Passerelle PROFINET : La clef essentiel pour une transition vers des technologies de pointe.

  • Passerelle PROFINET : Simple replacement des coupleurs PROFIBUS PA/DP
  • Ré-utilsation des segments PROFIBUS PA sans aucune modification
  • Support de la redondance PROFINET, afin d’accroitre la fiabilité.

Connexion directe aux segments PROFIBUS

  • Cette passerelle PROFINET/PROFIBUS PA est assimilé à un device PROFINET et un maître PROFIBUS PA
  • Supporte jusqu’à 4 segments PROFIBUS PA

Configuration, paramétrisation et outils d’administration aux Standard en vigeur pour cette passerelle PROFINET / PROFIBUS PA

  • Supporte  les outils PROFINET tels que: TIA Portal, Step7 et PC WORXS
  • Incluant  CommDTM et permettant l’utilisation d’applications FDT/DTM
  • Parametrisation EDD possible via Simantic PDM

Details Techniques

Technical Details
HardwareProcessor
Status LEDs (Gateway)Status LEDs (Fieldbus)		Altera Cyclone V SoC with dual-core ARM Cortex-A9
PWR (power supply), RUN (operation), ERR (error), CFG (configuration and update)
SF (system fault), BF (bus fault)
Interfaces and ConnectorsEthernet

PROFIBUS PA

2 * IEEE 802.3 100BASE-TX / 10BASE-T, embedded PROFINET switch for daisy chain topology
Connectors: RJ45
Protocol: PROFINET RT / IRT, Support of PROFINET redundancy protocols
RESTful API interface for device configuration
Up to 4 PROFIBUS PA (MBP) segments (refer to the section “Order Numbers”),
Bus-powered Medium Attachment Unit (MAU): Fieldbus voltage range: 9 VDC … 32 VDC,
current consumption 10 mA,
Connectors: 3-position screw connection, galvanically isolated
Physical PropertiesDimensions (H x W x D)
Weight
Power SupplyOperating / Storage Temperature
Relative Humidity
Cooling
Coating
Mounting
Protection Class		100 mm x 35 mm x 105 mm
About 0.25 kg
18 VDC … 32 VDC; SELV/PELV power supply mandatory
Typical input current: 200 mA, maximum input current: 1 A (allowing for in-rush current at switch-on)
No power supply to PROFIBUS PA segments through pnGate PA
-40 °C … +70 °C / -40 °C … +85 °C
(see detailed mounting description in user manual)
10 % … 95 %, non-condensing
Convection, no fan
Conformal coating based on ANSI / ISA-S71.04 G3
DIN rail 35 mm
IP20

Références

Scope of Delivery
HardwarepnGate PA Gateway
SoftwareGSDtoGSDML Converter, FDT CommDTM, PACTware, Drivers and Tools
DocumentationOn CD-ROM
Order Numbers
GCA-AL-024602pnGate PA, PROFINET to PROFIBUS-PA Gateway. Supports up to 2 PROFIBUS PAsegments (up to 32 PA devices).
GCA-AL-024604pnGate PA, PROFINET to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PAsegments (up to 64 PA devices).
GCA-AL-024605pnGate PA (for STAHL carrier), PROFINET to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PA devices). For reversed mounting position on STAHL backplane.
Additional Products and Services
GCA-EL-024802mbGate PA, Modbus/TCP to PROFIBUS-PA Gateway. Supports up to 2 PROFIBUS PA segments (up to 32 PA devices).
GCA-EL-024804mbGate PA, Modbus/TCP to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PA devices).

Archive

Si vous avez besoin de Firmware antérieur, veuillez nous contacter :  support@fr.atevatech.com

Les personnes intéressés par ce produit, peuvent aussi être intéressés par :

  • pnGate PB : PROFINET to PROFIBUS Gateway. Supports up to 2 PROFIBUS PAsegments (up to 32 PA devices, MBP physical layer) and 1 PROFIBUS DP segment (RS485).

pnGATE PB

Passerelle PROFINET vers PROFIBUS DP/PA (pnGate PB )

Intégration directe de segments  PROFIBUS DP et PA vers un système de contrôle PROFINET

  • Ré utilisez les “power confitioners” dans un projet de mises à jours de réseaux
  • Pas de segments PROFIBUS DP intermédiaire.
  • Préparez pour l’intégration standard et pour les outils d’Assets Managment.

Général

Key Component for Transition to State-of-the-Art Technology

  • Simple replacement of installed PROFIBUS DP/PA segment coupler
  • Re-use of existing PROFIBUS segments without requiring modification
  • Support of PROFINET redundancy for increased reliability

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP and PROFIBUS PA segments from PROFINET networks
  • Acting as PROFINET Device, PROFIBUS PA and PROFIBUS DP Master
  • Support of one PROFIBUS DP segment and up to two PROFIBUS PA segments

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major PROFINET engineering tools such as TIA Portal, Step7 and PC WORXS
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

Details techniques

Technical Details
HardwareProcessor
Status LEDs (Gateway)Status LEDs (Fieldbus)		Altera Cyclone V SoC with dual-core ARM Cortex-A9
PWR (power supply), RUN (operation), ERR (error), CFG (configuration and update)
SF (system fault), BF (bus fault)
Interfaces and ConnectorsEthernet

PROFIBUS PA

PROFIBUS DP-V0 / V1

2 * IEEE 802.3 100BASE-TX / 10BASE-T, embedded PROFINET switch for daisy chain topology
Connectors: RJ45
Protocol: PROFINET RT / IRT, Support of PROFINET redundancy protocols
RESTful API interface for device configuration
2 * PROFIBUS PA (MBP) segments,
Bus-powered Medium Attachment Unit (MAU): Fieldbus voltage range: 9 VDC … 32 VDC,
current consumption 10 mA,
Connectors: 3-position screw connection, galvanically isolated
1 Segment with RS485 Physical Layer, Connector: 9-pin Sub-D socket
Physical PropertiesDimensions (H x W x D)
Weight
Power SupplyOperating / Storage Temperature
Relative Humidity
Cooling
Coating
Mounting
Protection Class		100 mm x 35 mm x 115 mm
Approx. 0.25 kg
18 VDC … 32 VDC; SELV/PELV power supply mandatory
Typical input current: 200 mA, maximum input current: 1 A (allowing for in-rush current at switch-on)
No power supply to PROFIBUS PA segments through pnGate PB
-40 °C … +70 °C / -40 °C … +85 °C
(see detailed mounting description in user manual)
10 % … 95 %, non-condensing
Convection, no fan
Conformal coating based on ANSI / ISA-S71.04 G3
DIN rail 35 mm
IP20

References

Scope of Delivery
HardwarepnGate PB Gateway
SoftwareGSDtoGSDML Converter, FDT CommDTM, PACTware, Drivers and Tools
DocumentationOn CD-ROM
Order Numbers
GCA-AN-024608pnGate PB, PROFINET to PROFIBUS Gateway. Supports up to 2 PROFIBUS PA segments (up to 32 PA devices, MBP physical layer) and 1 PROFIBUS DP segment (RS485).
Additional Products and Services
GCA-AL-024602pnGate PA, PROFINET to PROFIBUS-PA Gateway. Supports up to 2 PROFIBUS PA segments (up to 32 PROFIBUS PA devices).
GCA-AL-024604pnGate PA, PROFINET to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PROFIBUS PA devices).
GCA-AL-024605pnGate PA (for STAHL carrier), PROFINET to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PROFIBUS PA devices). For reversed mounting position on STAHL backplane
GCA-EL-024802mbGate PA, Modbus/TCP to PROFIBUS-PA Gateway. Supports up to 2 PROFIBUS PA segments (up to 32 PROFIBUS PA devices).
GCA-EL-024804mbGate PA, Modbus/TCP to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PROFIBUS PA devices).

Video

pnGate : Profinet to Profibus DP/PA

Wiki

A savoir

Sous Firmware v 1.30
  Login : administrator
  Password : FGadmin!1

THScope ( Logiciel )

Management and Diagnostics for Industrial Networks

TH SCOPE is a software product for industrial network management and network diagnostics. Geared to plant operators and maintenance personnel, TH SCOPE is an all-in-one, easy-to-use solution for permanent monitoring and predictive maintenance, for acceptance testing and for troubleshooting. Combined with TH LINK components, the product supports PROFIBUS, PROFINET, EtherNet/IP and Modbus TCP protocols.
The PROFINET Commissioning Report functionality is now available in new THSCOPE Release. Download the new THSCOPE under ‘Downloads’ section.
csm_THScope_D_EN_160401_300_9e86a142a3

Overview

Versatile Solution for a Wide Variety of Diagnostics Applications

  • Network commissioning, acceptance testing
  • Stationary operation for continuous monitoring
  • Fault localization and identification in case of failure

Comprehensive Representation and Analysis of Diagnostic Data

  • Data on network communication (e.g. load, error statistics)
  • Data from network configuration (e.g. device names, firmware versions, topology)
  • Diagnostic messages (network and device diagnostics)
  • Data collection also from standard Ethernet devices (e.g. PCs or camera systems)

Optimized for Maintenance Users

  • Easy and intuitive handling and operation
  • No expert knowledge of IT or networks required
  • Support of various network protocols (PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP)

Flexible Integration into Existing Systems and Processes

  • Integration of network data into monitoring tools and supervisory control systems via SNMP or OPC
  • Export of all diagnostic data, support of further processing in applications such as Excel
  • Web-based access, local or remote

Technical details

Functionality
  • Network overview with network and device status plus diagnostic messages with troubleshooting recommendations
  • Analysis of device logs
  • Live list, statistics, inventory
  • GSDML file support, plaintext messages in diagnostic list
  • Topology and trend analysis
  • Automatic e-mail notification in case of fault
  • Reference comparison
  • Acceptance measurements and acceptance reports
  • Data export via Excel
Supported ProtocolsPROFIBUS (TH SCOPE V2.2),
PROFINET, EtherNet/IP, Modbus TCP (TH SCOPE V2.2 and TH SCOPE V3.0)
Interfaces
  • SNMP Agent
  • OPC Classic DA Server
System Requirements
  • Web browser with Adobe Flash Player 14 or higher
    (for TH SCOPE V2.2, not required for TH SCOPE V3.0)
  • Adobe Reader 8 or higher for reading the documentation and for printing the topology
Supported Operating SystemsWindows 7, Windows 8, Windows 8.1,
Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Network AccessData collection through TH LINK (PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP and Industrial Ethernet)
Demo VersionFull TH SCOPE functionality can be used for free for 30 days after installation
LicensingVia software or hardware key

References

 Scope of Delivery
SoftwareTH SCOPE (by download from Softing‘s website)
LicenseSoftware or hardware key
DocumentationInstallation Manual, User Manual, Release Note
Order Numbers
ATV-LRA-JY-003024TH SCOPE (software key)
ATV-LRL-JY-003025TH SCOPE (hardware key)
Additional Products and Services
ATV-GEA-JN-003006TH LINK PROFIBUS
ATV-GDA-JA-003034TH LINK PROFINET
ATV-GDA-JY-003037TH LINK Industrial Ethernet
ATV-LRA-JY-003028TH LINK PC Industrial Ethernet

FAQ

TH SCOPE:
If your network is protected by a second firewall in addition to the Windows firewall, make sure that the following settings are made to allow TH SCOPE services to communicate properly.

  • Enabling of HTTP port 80 – inbound and outbound
  • Enabling of SNMP port 161 inbound or port 2367 (if port 161 is used by another SNMP agent).
  • Enabling of IP 224.0.5.128 port 2364 UDP outbound
  • Enabling of UDP ports 2365 outbound and 2366 inbound



The following ports are used by TH SCOPE for internal communication only:

  • Port 22
  • Port 80
  • Port 1100
  • Ports 1123 – 1151
  • Port 1500
  • Port 1501
  • Ports 2363 – 2366
  • Ports 49152 – 49171

People interested in this product, can be interested in :

THLink – Industrial Ethernet

Outil de diagnostic : Industrial Ethernet, indépendant du contrôleurs

Le THLink Industrial Ethernet, permet le contrôle et le diagnostic des réseaux PROFINET, MODBUS TCP et ETHERNET/IP. Les données sont collectées sur un réseua de 254 noeuds et  rendent disponibles ses données via le logiciel  THSCOPE. le THLINK Industrial Ethernet est facile à utiliser et peut être intégré sans interférer avec une installation existante

csm_THLink_IE_D_EN_170101_311_fbdb7e6c27

Overview

THLink Industrial Ethernet for an independent Access to PROFINET, EtherNet/IP and Modbus TCP Networks

  • Controller-independent
  • Independent of configuration tools
  • Only one tool needed to monitor multiple IP subnetworks (up to 254 nodes, one or more controllers

THLink Industrial Ethernet has been designed for Installation without Interference with Plant Operation

  • Connection to free port in industrial network, also possible during operation of the plant
  • No need to install TAPs or use mirror ports
  • Highest security (separate accesses for control room level and plant level, no routing)
  • Easy integration into existing plants thanks to compact design

Powerful Data Collection Capabilities Optimized for Ethernet-Based Industrial Communication

  • Support of the PROFINET, EtherNet/IP and Modbus TCP protocols
  • Collection also from standard Ethernet devices (e.g. PCs or camera systems)
  • PROFINET supervisor in PROFINET networks
  • Network load limit according to PROFINET guidelines

Optimized for Use by Maintenance Engineers, thanks to the THLink industrial Ethernet

  • Suitable for network acceptance testing, continuous monitoring and troubleshooting
  • Easy and intuitive handling and operation
  • Fault identification with intelligent troubleshooting assistance
  • Seamless integration with TH SCOPE diagnostics software

Technical details

Functionality
  • Network detection and data collection
  • Alarm notification in case of fault
  • Basic monitoring, configuration
  • Integrated web server
Input Voltage24 VDC (18 VDC … 32 VDC)
Current consumptionmax. 180 mA
Current consumption relay contactmax. 100 mA
Operating Temperature-40 °C … +75 °C
Relative Air Humidity5 … 95 % (no condensation)
Ethernet PortsRJ-45 (10Base-T/100Base-TX)
Supported SD CardsSee Release Notes
Mounting35 mm DIN rail
Dimensions (HxWxD)22.5 x 99 x 114.5 mm
Weight120 g
CertificationsCE

References

GDA-JY-003037TH LINK Industrial Ethernet

Scope of Delivery

HardwareTH LINK Industrial Ethernet
DocumentationInstallation Manual, Release Note (by download)

Additional Products and Services

ATV-LRA-JY-003024TH SCOPE (software key)
ATV-LRL-JY-003025TH SCOPE (hardware key)
ATV-LRA-JY-003028TH LINK PC Industrial Ethernet (software key)
ATV-LRL-JY-003029TH LINK PC Industrial Ethernet (hardware key)
ATV-TRA-PN-TECHTraining “PROFINET Technology”
ATV-TRA-PN-CERTENGTraining “PROFINET Commissioning and Troubleshooting”

epGatePN

epGatePN : Passerelle Ethernet IP -> PROFINET

Passerelle Ethernet IP vers PROFINET

Integration d’esclaves  PROFINET I/O via un mapping dans les systèmes de contrôles Ethernet IP



La passerelle epGatePN, élabore une passerelle entre un réseau Ethernet IP et jusqu’à 32 esclaves PROFINET. Alors qu’une des ports RJ45 se connecteau réseau Ethernet IP, l’autre port de la passerelle agit comme un controleur PROFINET. Il permet l’intégration de produits PROFINET à un réseau existant Ethernet IP. L’outil de configuration disponible, permet de définir la configuration PROFINET, d’utiliser les symboles et le “mapping” pour la/les PLCs Ethernet IP. Ainsi l’utilisateur est déchargé des taches suspectibles d’erreurs et défini individuellement l’accès aux données des 2 cotés de la passerelle.

Solutions similaires:
epGate DP: Integration de segments PROFIBUS DP dans un système Ethernet/IP
epGate PA: Integration de 4 segments PROFIBUS PA dans un système Ethernet/IP
epGate PB: Integration de 2 segments PROFIBUS PA  & 1 segment PROFIBUS DP dans un système Ethernet/IP

Général

Simple Integration Through Add-On Instructions

  • Data access of PLC program to PROFINET Devices without requiring detailed PROFINET knowledge
  • Mapping between the two protocols generated by provided tools
  • Usage of Add-On Instructions (AOI), containing detailed PROFINET data type definitions
  • Transparent communication overcoming protocol differences

Time Saving Configuration Creation and Verification

  • Configuration tool for online access to PROFINET Devices via the network
  • Easy assignment of device properties
  • Early identification of discrepancies between offline configuration and real situation

Built-In Web Server For Monitoring And Interaction

  • Status information about both protocols
  • Monitoring of mapping as well as of exchanged data
  • Individual modification of FG-260 settings, including address information
  • Download and upload of all FG-260 configuration information using web server

Different Use Cases are addressed

  • Direct access from Ethernet/IP Scanner in the PLC to PROFINET field devices
  • Access to machines with internal PROFINET network by deploying I-Device capabilities

Détails Techniques

Hardware
ProcessorAltera Cyclone V SoC with Dual-core ARM Cortex-A9
Status LEDs (Gateway)PWR (power supply), RUN (running), ERR (error), CFG (configuration upload)
Status LEDs (EtherNet/IP)Net (network), Mod (module)
Status LEDs (PROFINET)SF (system fault), BF (bus fault)
Connectors2 x IEEE 802.3 100BASE-TX/10BASE-T (1 Ethernet port per protocol)
Dimensions (HxWxD)100 mm x 35 mm x 105 mm
Weightca 0.25 kg
Power Supply18 VDC … 32 VDC, SELV/PELV supply mandatory
Typically 200 mA, maximum 1 A at switch-on
Operating Temperature, Horizontal DIN Rail Installation-40 °C … 55 °C (0 mm minimum distance)
-40 °C … 65 °C (17.5 mm minimum distance)
Operating Temperature, Vertical DIN Rail Installation-40 °C … 40 °C (0 mm minimum distance)
-40 °C … 50 °C (17.5 mm minimum distance)
Storage Temperature-40 °C … 85 °C
Relative Humidity10 % … 90 %, non condensing
CoolingConvection, no fan
MountingDIN Rail (35 mm)
Protection ClassIP20
Software
ProtocolsEtherNet/IP Adapter (Up to 2 input and 2 output assemblies with up to 255 Bytes data each, minimum RPI: 8 ms)
PROFINET Controller (up to 8 devices at 1 ms cycle time)
Additional FunctionalityMapping application, web server
Supported Versions of Rockwell Automation PLC Programming SoftwareV16 – V21
Emission ConformityEC Directive 2004/108/EG “Electromagnetic Compatibility“, EN 55011, Group 1, Class A
EC Directive 2004/108/EG “Electromagnetic Compatibility“, EN 55022, Class A
EC Directive 2004/108/EG “Electromagnetic Compatibility“, EN 61000, Part 6-4
FCC CFR45, Part 15 Section 15.107 and 15.109 (Class A),
VCCI Class A Information Technology Equipment 2002
Immunity ConformityEC Directive 2004/108/EG “Electromagnetic Compatibility“, EN 61000, Part 6-2
CertificationsCE
EN/IEC 61010-1 and CB
EN/IEC 61010-2-201 and CB
UL 61010-1 and UL 61010-2-201

Références

GCL-CA-010260FG-260

Scope of Delivery

HardwarePasserelle epGatePN
SoftwareEDS File, Outils de configuration et outils de recherche sur CD
DocumentationQuick Startup Guide documentation, User Guide sur CD-ROM

People interested in this product, might be interested in :

THLink Profinet
