Switch LANTECH : IPGS-5488MGSFP-8

Switch industriel Administrable :810/100/1000T PoE af/at + 8100M/1G SFP + 4*1G/2.5G SFP w/ L2+ / G.8032 Ring & LTDP**; Alimentation : 12V/48V

Le Switch Lantech support IEEE802.3at/af jusqu’à 30W par port; PoE budget 240W(48V) ou 120W (model entrée :12V / 24V)
PoE management incluant Detection et “Scheduling”
Protection “Enhanced G.8032 ring” < 20ms pour un simple anneau. Supporte le mode auto, mode “amélioré”, le mode “Train”, multi-VLAN et mode basic; Enhanced G.8032 ring couvre les packets multicast; MSTP 8/16**MSTI /RSTP ; support MRP ring
LTDP** (Link Train Discovery Protocol) avec assignation IP automatique et configuration automatique
Détection de cablage erroné & Protection node défectieuse
Interface WebGUI, incluant la topology automatique ( schéma ) et monitoring DDM en dB; Complete CLI
Supporte l’aggrégation de liens :LACP, IGMP v3/router port, Serveur DHCP & DHCP Option82; Distribution DHCP par port, DHCP par Mac Address, QoS via VLAN**, SSH/SSL, HTTPS, INGRESS/EGRESS** ACL L2/L3,TACACS+, QinQ**, SMS**
Protocol basé sur VLAN** ; IPv4/IPv6 Subnet basé VLAN**
Monitoring de la température, tension et courant
USB port pour sauvegarde, fichier de restauration de la configuration, mise à jour
Utilisation en température extrême (-E model):-40~75C/-40~167F; Design sans ventilateur

Généralité

Lantech IPGS-5488MGSFP is a high performance L2+ (All Gigabit) Ethernet switch with 8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP auto-sensing cage w/8 PoE 802.3 af/at injectors which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring. It also supports train ring**, enhanced mode with easy configuration, comprehensive QoS, QoS by VLAN**, advanced security including INGRESS/EGRESS** ACL L2/L3, TACACS+, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ** which are important features required in large network. The Cisco Discovery Protocol (CDP) and LLDP are supported for Ciscoworks to detect the switch info and show on L2 map topology. The enhanced platform allows quick booting up time under 50 seconds.

PoE at/af up to 8 10/100TX Ports with detection and scheduling
Compliant with 802.3af/at standard, the Lantech IPGS-5488MGSFP-8 is able to feed each PoE port up to 30 watt. Lantech IPGS-5488MGSFP-8 supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD is hanged then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE port can be enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.

Innovative LTDP** (Link Train Discovery Protocol) to assign proper IP address as well as inherit configuration for replaced Ethernet switch
With port-based DHCP server, LTDP** allows Lantech Ethernet switch series in single ring to discover the current IP addresses and to assign the same IP address and configuration. Furthermore, LTDP** can inherit the same configuration to new replaced Ethernet switch.

Miss-wiring avoidance, Loop protection, Repowered auto ring** restore
The IPGS-5488MGSFP-8 also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPGS-5488MGSFP-8 is able to alert with the LED indicator and disable ring automatically. Repowered auto ring** restore function (node failure protection) ensures the Ethernet switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. Loop protection is also available to prevent the generation of broadcast storm when a dumb Ethernet switch is inserted in a closed loop connection.

DHCP option 82 & Port based, Mac based DHCP, Option66, IPv6 DHCP server**
DHCP option 82 and Port based DHCP function can offer the same IP address on port base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network. DHCP option 66 is also supported. Optional IPv6 address resolution for DHCP server can be supported.

User friendly GUI, Auto topology drawing
The user friendly UI, innovative auto topology drawing and topology demo makes IPGS-5488MGSFP-8 much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.

Enhanced G.8032 ring, 8/16** MSTI MSTP; Optional MRP ring**
Lantech IPGS-5488MGSFP-8 features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering multicast packets. It also supports various ring topologies that covers multi-chain (under enhanced ring), train ring**, basic ring, multiple-VLAN ring** and auto-ring** by easy setup than others. The innovative auto-ring** configurator (auto mode**) can calculate owner and neighbor in one step. It supports MSTP that allows each spanning tree for each VLAN for redundant links with 8/16** MSTI.

Optional MRP (Media Redundancy Protocol) can be supported for industrial automation networks.

QoS by VLAN** for legacy device
QoS by VLAN can allow Ethernet switch to tag QoS by VLAN** regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

QinQ**, QoS QinQ** and GVRP supported
It supports the QinQ**, QoS QinQ**, GVRP for large VLAN segmentation.

IGMPv3, GMRP, router port, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port and static multicast forwarding binding by ports for video surveillance application.

Editable configuration file; USB port for upload/download configuration; InstaView** for mass deployment
The configuration file of Lantech IPGS-5488MGSFP-8 can be exported and edited with word processor for the other Ethernet switches configuration with ease. The built-in watchdog design can automatically reboot the switch when CPU is found dead.

The USB port can upload/download the configuration from/to USB dongle.

With optional InstaView, the configuration files can be mass backup, mass-editable deployed and auto upgrading firmware in batch make maintenance easy.

2DI/2DO for relay contact and event alerting by email & traps
In case of event, the IPGS-5488MGSFP-8 is able to send an email & SMS** text message to pre-defined addresses as well as SNMP Traps out immediately. It provides 2DI and 2DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

Environmental monitoring for Ethernet switch inside information
The environmental monitoring can detect Ethernet switch overall temperature, total PoE load, voltage and current where can send the SNMP traps, email and SMS** alert when abnormal.

Dual power 12V or 48V input; High PoE budget
The Lantech IPGS-5488MGSFP-8 is designed with dual power supply at 12VDC (12V model) for 9.5V~56VDC input and can provide 80W (12V input) or 120W (24V input) PoE budget. The 48V model can support dual power 44VDC~56VDC input and can have 240W PoE budget.

Industrial hardened design with high EFT and ESD protection
Lantech IPGS-5488MGSFP-8 features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. Featured with relay contact alarm function, the IPGS-5488MGSFP-8 is able to connect with alarm system in case of power failure or port disconnection. The IPGS-5488MGSFP-8 also provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet.

It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory applications. The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C

Fonctions

8 10/100/1000T + 8 100M/1G SFP+ 4 1G/2.5G SFP auto-sensing cage w/8 PoE 802.3af/at injectors L2+ industrial managed Ethernet switch (Total 20 Ports Switch)
12V dual input from 9.5V~56VDC(12V model); 48V dual input from 44V~56VDC (48V model)
Back-plane (Switching Fabric): 52Gbps
16K MAC address table
DDM to support SFP diagnostic function***
- Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
10KB Jumbo frame
User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
Enhanced G.8032 Ring protection in 20ms for single ring
- Support various ring/chain topologies, including train ring**, enhanced ring, basic ring, auto ring** & multiple VLAN ring**
- Enhanced G.8032 ring configuration with ease
- Auto ring** configuration(auto mode**) for single ring
- Cover multicast and data packets protection
LTDP** (Link Train Discovery Protocol) with Port based DHCP can assign the same IP address and configuration to replaced switch in a single ring
Provides EFT protection ±2000 VDC for power line
Supports ±6000 VDC Ethernet ESD protection
Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority
QoS by VLAN** to prioritize all devices in the network
IEEE 802.1d STP*, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy with 8/16** MSTI
4K 802.1Q VLAN, Port based VLAN, GVRP, QinQ**, QoS QinQ**
Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaView**
DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server Port based DHCP server; DHCP Option 66; IPv6 address resolution for DHCP server**
Mac based DHCP** server to assign IP address that includes dumb switches in DHCP network
Bandwidth Control
- Ingress packet filter and egress** rate limit
- Broadcast/multicast packet filter control
Relay alarm output system events
Miss-wiring avoidance
- LED indicator
Repowered auto ring** restore
- Ensure the Ethernet switches in a ring to survive after power breakout is back
- The status can be shown in NMS when each Ethernet switch is back
TFTP/SFTP**/HTTP firmware upgrade; LantechTM InstaView** for multiple upgrade
System Event Log, SMTP Email alert, SMS** mobile (text) and SNMP Trap for alarm support; 32 RMON counters
Security
- SSL/SSH/INGRESS/EGRESS** ACL L2/L3
- Port Security: MAC address entries/Filter/static MAC-Port binding
- IP Security: IP address security management to prevent unauthorized intruder.
- TACACS+
- Login Security: IEEE802.1X/RADIUS
- HTTPS for secure access to the web interface
Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring for reversed multicast video flow
IGMPv1,v2,v3 with Query mode for multi media
Factory reset button to restore setting to factory default
Watchdog design to auto reboot switch when CPU is found dead
Environmental monitoring for system input voltage, PoE load, current and ambient temperature
Supports DIDO (Digital Input/Digital Output)
Configuration backup and restoration
- Supports text configuration file for system quick installation
- USB port to upload/download configuration file by USB dongle
- InstaView** for centralized configuration deployment, backup & upgrade
IP30 metal housing with DIN rail and Wall-mount** design

Hardware

Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE802.3ad Link Aggregation Control Protocol (LACP) IEEE802.1AB Link Layer Discovery Protocol (LLDP) IEEE802.1X User Authentication (Radius) IEEE802.1p Class of Service IEEE802.1Q VLAN Tag; Q-Bridge MIB** IEEE802.3at/af Power over Ethernet
Switch Architecture	Back-plane (Switching Fabric): 52Gbps
Mac Address	16K MAC address table
Jumbo frame	10KB
Connectors	10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function Mini-GBIC: 8x 100M/1G SFP + 4 x 1G/2.5G SFP auto-sensing cage with DDMI RS-232 connector: RJ-45 type USB x 1 Power & Relay connector: 1 x 6-pole terminal block DIDO : 1 x 6-pole terminal block
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable; EIA/TIA-568 100-ohm (100m) 1000Base-T: 4-pair UTP/STP Cat5E/6 cable; 10GBaseT:4-pair STP Cat6/6A/7 cable
Optical Cable	1Gbps: Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm) Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm) 2.5Gbps Multi mode: 0 to 300 m, 850 nm (50/125 μm); Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm) WDM 1Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) WDM 2.5Gbps Single mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
LED	Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green) Ethernet port: Link/Activity (Green), Speed (Green); PoE: Link/Act (Green); Mini-GBIC: Link/Activity (Green)
DI/DO	2 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 2 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F(-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	Dual 9.5~56VDC (12V model); Dual 44~56VDC (48V model)
PoE Budget	12V model: 24V: 120W / 12V: 80W 48V model: 240W
PoE pin assignment	RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
Power Consumption	25W
Case Dimension	Metal case. IP-30, 74 (W) x 135 (D) x 152 (H) mm
Weight	900 g
Installation	DIN Rail and Wall Mount** Design
EMI & EMS	FCC Class A, CE EN55022 Class A, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5 ED3, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11
Stability Testing	IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
MTBF	591,245 (Hrs) (standards: IEC 62830)
Warranty	5 years

Software

Management	SNMP v1 v2c, v3/ Web/Telnet/CLI
SNMP MIB	RFC 1215 Traps MIB, RFC 1213 MIBII RFC 1158 MIBII RFC 1157 SNMP MIB, RFC 1493 Bridge MIB RFC 1573 IF MIB RFC 2674 VLAN MIB, Partial RFC 1757 RMON, RFC 2674 Q-Bridge MIB; Bridge MIB, LLDP MIB RSTP MIB** Private MIB
ITU G.8032	Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (single ring enhanced mode) Support various ring/chain topologies Includes train ring, auto ring, basic single ring, enhanced ring, multiple-VLAN ring** Enhanced G.8032 ring configuration with ease Cover multicast & data packets protection
LTDP**(optional)	Link Train Discovery Protocol with Port based DHCP server to assign the same IP address and to keep the config file when any switch changes
User friendly UI	Auto topology drawing Topology demo Auto configuration for G.8032(auto mode) for single ring DDM threshold monitoring with dB values* Complete CLI for professional setting
Port Trunk with LACP	LACP Port Trunk: 10 Trunk groups
LLDP	Supports LLDP to allow switch to advise its identification and capability on the LAN
CDP	Cisco Discovery Protocol for topology mapping
Environmental Monitoring	System status for input voltage, current and ambient temperature to be shown in GUI and sent alerting if any abnormal status
VLAN	Port Based VLAN IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096) GVRP, QinQ, QoS QinQ, Protocol based VLAN ; IPv4/IPv6 Subnet based VLAN
IPv6/4	Present
Spanning Tree	Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree 8/16 MSTI
Quality of Service	The quality of service determined by IPv4 Type of service, IPv4 Differentiated Services Code Points – DSCP
Class of Service	Support IEEE802.1p class of service, per port provides 8 priority queues
QoS by VLAN**	Tagged QoS by VLAN** for all devices in the network
IP Security	Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
Login Security	Supports IEEE802.1X Authentication/RADIUS
Port Mirror	Support 3 mirroring types: “RX, TX and Both packet”
Network Security	Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder. 802.1X access control for port based and MAC based authentication/static MAC-Port binding Ingress/Egress** ACL L2/L3 SSL/ SSH for Management HTTPS for secure access to the web interface TACACS+ for Authentication
IGMP	Support IGMP snooping v1,v2,v3; Supports IGMP static route; 256 multicast groups; IGMP router port ; IGMP query; GMRP
Static multicast forwarding	Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
Bandwidth Control	Support ingress packet filter and egress packet limit. The egress** rate control supports all of packet type. Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet. The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.
Flow Control	Supports Flow Control for Full-duplex and Back Pressure for Half-duplex
System Log	Supports System log record and remote system log server
SMTP/Text SMS**	Supports SMTP Server and 8 e-mail accounts for receiving event alert; can send SMS** text alert via mobile
Relay Alarm	Provides one relay output for port breakdown, power fail and alarm. Alarm Relay current carry ability: 1A @ DC24V
Protection	Miss-wiring avoidance Repowered auto ring** restore Loop protection
SNMP Trap	Up to 10 trap stations; trap types including: Device cold start Authorization failure Port link up/link down DI/DO open/close Typology change(ITU ring) Power failure Environmental abnormal**
DHCP	Provide DHCP Client/ DHCP Server/DHCP Option 82/Port based or VLAN based DHCP distribution (DHCP relay agent); DHCP Option 66; IPv6 address resolution for DHCP server**
Mac based DHCP** Server	Assign IP address by Mac that can include dumb switch in DHCP network
DNS	Provide DNS client feature and support Primary and Secondary DNS server.
SNTP	Supports SNTP to synchronize system clock in Internet
Firmware Update	Supports TFTP/SFTP firmware update, TFTP backup and restore; HTTP firmware upgrade; LantechTM InstaView for multiple upgrade
Configuration upload and download	Supports text configuration file for system quick installation; Support factory reset button to restore all settings back to factory default; USB auto restore/backup configuration file
Dual Image Firmware*	Support dual image firmware function

References

P/N	MODEL NAME	DESCRIPTION
8350-856	IPGS-5488MGSFP-12V	8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Environmental Monitoring; dual 9.5V~56VDC input, PoE budget 80W at 12V; 120W at 24V
8350-8561	IPGS-5488MGSFP-12V-E	8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Environmental Monitoring; dual 9.5V~56VDC input, PoE budget 80W at 12V; 120W at 24V
8350-855	IPGS-5488MGSFP-48V	8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Environmental Monitoring; dual 44V~56V input, PoE budget 240W
8350-8551	IPGS-5488MGSFP-48V-E	8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G SFP L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Environmental Monitoring; dual 44V~56V input, PoE budget 240W

OPTIONAL ACCESSORIES – DIN Rail Power for 802.3at Applications

MODEL NAME	DESCRIPTION
NDR-240-48	240W (48V 5A) Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120-48	120W (48V 2.5A) Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)

OPTIONAL ACCESSORIES – Mini GBIC (SFP)

MODEL NAME	DESCRIPTION	MODEL NAME	DESCRIPTION
8330-162X	MINI GBIC 1000SX (LC/0.5km) Transceiver	8330-186	LTSFP-1000BX-20KM Transceiver (WDM 1310)
8330-163X	MINI GBIC 1000SX2 (LC/2km) Transceiver	8330-187	LTSFP-1000BX-20KM Transceiver (WDM 1550)
8330-165X	MINI GBIC 1000LX (LC/10km) Transceiver	8330-180	LTSFP-1000BX-40KM Transceiver (WDM 1310)
8340-0591	MINI GBIC 1000LHX (LC/40km) Transceiver	8330-182	LTSFP-1000BX-40KM Transceiver (WDM 1550)
8330-166	MINI GBIC 1000XD (LC/50km) Transceiver	8330-181	LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-169	MINI GBIC 1000XD (LC/60km) Transceiver	8330-183	LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-167	MINI GBIC 1000ZX (LC/80km) Transceiver	8330-184	LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-170	MINI GBIC 1000EZX (120km) Transceiver	8330-185	LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-168	MINI GBIC 1000T (100m) Transceiver	8330-262D	MINI GBIC 2.5G 850nm VCSEL (LC/0.3km) Transceiver
8330-188	LTSFP-1000BX-10KM Transceiver (WDM 1310)	8330-263D	MINI GBIC 2.5G 1310nm FP (LC/2km) Transceiver
8330-189	LTSFP-1000BX-10KM Transceiver (WDM 1550)	8330-265D	MINI GBIC 2.5G 1310nm DFB (LC/15km) Transceiver
All SFP P/N# ended with D are with DDM function

Downloads

Documents

Formation

Pour des formations, contactez nous !

IGS-5408DFT-PT

2* 10/100/1000T + 2 100/1000 SFP + 8 10/100/1000T IEC-61850-3 Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring & MMS, LTDP**, PTPv2

Compliant with IEC61850-3 & IEEE1613
Supports PTP IEEE1588v2 two-step on Giga ports
Built-in MMS server based on IEC61850-90-4 switch data modeling for SCADA with monitoring and control
IEC packet counter for GOOSE monitoring
QoS for GOOSE packet**
LTDP** (Link Train Discovery Protocol) to auto-assign IP as well as inherit the configuration in replaced switch
Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI / RSTP; support MRP ring**
Miss-wiring avoidance & node failure protection
User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82; Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3, TACACS+*, QinQ**, SMS**
Protocol based VLAN** ; IPv4/IPv6 Subnet based VLAN**
Environmental Monitoring for temp, voltage and current
Wide range dual DC input from 36V~72V with galvanic isolation
Optional InstaView** for centralized backup, editing the configuration file and upgrade firmware
USB port to backup, restore the configuration file and upgrade firmware (-U model)

Overview

Lantech IGS-5408DFT-PT is a high performance L2+ (Gigabit uplink) switch with 8 10/100/1000T + 2 10/100/1000T + 2 Dual Speed SFP that complies with IEC 61850-3 & IEEE 1613. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN model with easy configuration.

The built-in MMS server allows SCADA to control & monitor switch for data modeling, it also support hardware 2 step PTP (Precision Time Protocol) with IEEE 1588v2 standard.

GOOSE monitoring packet counter; Built-in MMS server for IEC61850 data modeling for monitoring and control Optional QoS for GOOSE packet
The exclusive GOOSE monitoring function (IEC packet) can display the counter of GOOSE message transmitted and received by port.

The built-in MMS (Manufacturing Messaging Specification) server can help SCADA to monitor and control switch by data modeling. It covers system, power, port status, environmental monitoring, network configuration.

Optional QoS scheme for Goose packet to ensure low latency in the data patch.

LTDP**(Link Train Discovery Protocol) for zero- touch maintenance
Lantech IPGS-5208GF (IP67/IP54) features LTDP protocol in single ring topology that can help to get the same IP for replaced switch or restore the same configuration with zero-touch.

Miss-wiring avoidance, Repowered auto ring restore, Loop protection
The IGS-5408DFT-PT also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IGS-5408DFT-PT is able to alert with the LED indicator and disable ring automatically. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

Enhanced G.8032 ring, 16 MSTI MSTP; Optional MRP ring**
Lantech IGS-5408DFT-PT features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring with easy setup. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows spanning tree over VLAN for redundant links with 16 MSTI.

DHCP option 82 & Port based, Mac based DHCP, Option66, IPv6 DHCP server**
DHCP option 82 and Port based DHCP function can offer the same IP address on port base or VLAN base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network. DHCP option 66 is also supported. Optional IPv6 address resolution for DHCP server can be supported.

QoS by VLAN for legacy devices
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

QinQ**, QoS QinQ** and GVRP** supported
It supports the QinQ**, QoS QinQ**, GVRP** for large VLAN segmentation.

IGMPv3, GMRP**, router port, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP**, router port and static multicast forwarding binding by ports for video surveillance application.

User friendly GUI, Auto topology drawing
The user friendly UI, innovative auto topology drawing and topology demo makes IGS-5408DFT-PT much easier to get hands-on. The IGS-5408DFT-PT supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech’s UI, including optical output power, input power, temperature, laser bias current and transceiver supply voltage***. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance. The complete CLI enables professional engineer to configure setting by command line.

Editable configuration file; USB port for configuration upload & download; InstaView** for mass deployment
The configuration file of Lantech IGS-5408DFT-PT can be exported and edited with word processor for the other switches configuration with ease. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead.

The built-in USB port can have configuration upload & download by USB dongle.

With optional InstaView, the configuration files can be mass backup, mass-editable deployed and auto upgrading firmware in batch make maintenance easy.

Event log & message; 2 DI / 2 DO
In case of event, the IGS-5408DFT-PT is able to send an email & SMS** text message to pre-defined addresses as well as SNMP Traps our immediately. It provides 2 DI and 2 DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

Environmental monitoring for switch inside information
The environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email and SMS** alert when abnormal.

Wide range dual DC powered input with galvanic isolation; Relay contact alarm
The Lantech IGS-5408DFT-PT is designed with wide range dual power input from 18V~72VDC with galvanic isolation. Featured with relay contact alarm function, the IGS-5408DFT-PT is able to connect with alarm system in case of power failure or port disconnection. The IGS-5408DFT-PT also provides ±2500V EFT, ±4000V Surge and ±8000V ESD air protection, which can reduce unstable situation caused by power line and Ethernet.

Industrial hardened design for extended temperature operation
Lantech IGS-5408DFT-PT features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.

Features

8 10/100/1000T + 2 10/100/1000T + 2 Dual Speed SFP (Total 12 Ports Switch)
Back-plane (Switching Fabric): 24Gbps
16K MAC address table
Built-in MMS server for SCADA data-modeling with control and monitoring
System info
Environmental monitoring
Power
Device event report
Port status
Port statistic
Port event report
Firmware upgrade
Network configuration
Two-step hardware PTP compliant with IEEE 1588 v2 for Gigabit ports
Optional QoS for Goose packet
DDM to support SFP diagnostic function***
- Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
10KB Jumbo frame
User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
Enhanced G.8032 Ring recovery < 20ms in single ring
- Support various ring/chain topologies, including train ring, enhanced ring, basic ring, auto ring & multiple VLAN ring
- Enhanced G.8032 ring configuration with ease
- Auto ring configuration(auto mode) for single ring
- Covers multi-cast and data packets
Provides EFT protection ±2500 VDC for power line.
Supports ±8000 VDC ESD air protection
±4000V Surge for signal port
provides 8 priority queues Port base, Tag Base and Type of Service Priority
IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy with with 16 MSTI
4K 802.1Q VLAN, Port based VLAN, GVRP*, QinQ*, QoS QinQ*
Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaView**
DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server Port based DHCP server; DHCP Option 66; IPv6 address resolution for DHCP server**
Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
Bandwidth Control
- Ingress packet filter and egress rate limit
- Broadcast/multicast packet filter control
Relay alarm output system events
Miss-wiring avoidance
- LED indicator
Repowered auto ring restore
- Ensure the switches in a ring to survive after power breakout is back
- The status can be shown in NMS when each switch is back
TFTP/ SFTP**/HTTP firmware upgrade; LantechTM InstaView** for multiple upgrade
Configuration backup and restoration
- Supports text configuration file for system quick installation
- USB port for upload / download configuration by USB dongle
- InstaView** for centralized configuration deployment, backup & upgrade
System Event Log, SMTP Email alert, SMS** mobile (text) and SNMP Trap for alarm support; 32 RMON counters
Security
- SSL/SSH/INGRESS/EGRESS ACL L2/L3
- Port Security: MAC address entries/Filter/MAC-Port binding
- IP Security: IP address security management to prevent unauthorized intruder.
- TACACS+*
- Login Security: IEEE802.1X/RADIUS
- HTTPS for secure access to the web interface
Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring for reversed multicast video flow
IGMPv1,v2,v3 with Query mode for multimedia; GMRP**
Factory reset button to restore setting to factory default
Watchdog design to auto reboot switch CPU is found dead
LTDP** (Link Train Discovery Protocol) with Port based DHCP can assign the same IP address and configuration to replacing switches in single ring. It can also keep the config file when switches being swapped
Supports DIDO (2 Digital Input / 2 Digital Output)
Wide range dual input power from 36V to 72V with galvanic isolation
Environmental monitoring for system input voltage, current and ambient temperature.
IP30 metal housing with DIN rail and Wall-mount** design

Technical details

Hardware Specifications

Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T Ethernet IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE802.3ad Link Aggregation Control Protocol (LACP) IEEE802.1AB Link Layer Discovery Protocol (LLDP) IEEE802.1X User Authentication (Radius) IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE1588 Precision Time Protocol v2
Switch Architecture	Back-plane (Switching Fabric): 24Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
Mac Address	16K MAC address table
Jumbo frame	10KB
Connectors	10/100/1000T:10 x ports RJ-45 with Auto MDI/MDI-X function Mini-GBIC: 2 x 100/1000 SFP socket with DDM RS-232 connector: RJ-45 type USB x 1 (-U model) Power & Relay connector: 1 x 6-pole terminal block DIDO : 1 x 6-pole terminal block
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)
Optical Cable	1.25Gbps: Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm) Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm) 125Mbps: Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm) Single mode: 0 to 30 km, 1310 nm (62.5/125 μm) WDM 1.25Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) WDM 125Mbps: Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
LED	Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red), RM(Green) Ethernet port: Link/Activity (Green), Speed (Green); Mini-GBIC: Link/Activity (Green)
DI/DO	2 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 2 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F(-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	36 to 72 VDC with galvanic isolation
Power Consumption	10W
Case Dimension	Metal case. IP-30, 74 (W) x 105 (D) x 152 (H) mm
Weight	900 g
Installation	DIN Rail and Wall Mount** Design
EMI & EMS	FCC Class A, CE EN55032, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-6-4, CE EN61000-6-2
Stability Testing	IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-64 (Vibration)
Railway verification	EN50121-4 , EN55022 (EMV), EN50125-3 (environmental conditions)
Substation Verification	IEC 61375
MTBF	830,589 hrs
Warranty	5 years

Software Specifications

8 10/100/1000T + 2 10/100/1000T + 2 Dual Speed SFP (Total 12 Ports Switch)
Back-plane (Switching Fabric): 24Gbps
16K MAC address table
Built-in MMS server for SCADA data-modeling with control and monitoring
System info
Environmental monitoring
Power
Device event report
Port status
Port statistic
Port event report
Firmware upgrade
Network configuration
Two-step hardware PTP compliant with IEEE 1588 v2 for Gigabit ports
Optional QoS for Goose packet
DDM to support SFP diagnostic function***
- Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
10KB Jumbo frame
User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
Enhanced G.8032 Ring recovery < 20ms in single ring
- Support various ring/chain topologies, including train ring, enhanced ring, basic ring, auto ring & multiple VLAN ring
- Enhanced G.8032 ring configuration with ease
- Auto ring configuration(auto mode) for single ring
- Covers multi-cast and data packets
Provides EFT protection ±2500 VDC for power line.
Supports ±8000 VDC ESD air protection
±4000V Surge for signal port
provides 8 priority queues Port base, Tag Base and Type of Service Priority
IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy with with 16 MSTI
4K 802.1Q VLAN, Port based VLAN, GVRP*, QinQ*, QoS QinQ*
Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaView**
DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server Port based DHCP server; DHCP Option 66; IPv6 address resolution for DHCP server**
Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
Bandwidth Control
- Ingress packet filter and egress rate limit
- Broadcast/multicast packet filter control
Relay alarm output system events
Miss-wiring avoidance
- LED indicator
Repowered auto ring restore
- Ensure the switches in a ring to survive after power breakout is back
- The status can be shown in NMS when each switch is back
TFTP/ SFTP**/HTTP firmware upgrade; LantechTM InstaView** for multiple upgrade
Configuration backup and restoration
- Supports text configuration file for system quick installation
- USB port for upload / download configuration by USB dongle
- InstaView** for centralized configuration deployment, backup & upgrade
System Event Log, SMTP Email alert, SMS** mobile (text) and SNMP Trap for alarm support; 32 RMON counters
Security
- SSL/SSH/INGRESS/EGRESS ACL L2/L3
- Port Security: MAC address entries/Filter/MAC-Port binding
- IP Security: IP address security management to prevent unauthorized intruder.
- TACACS+*
- Login Security: IEEE802.1X/RADIUS
- HTTPS for secure access to the web interface
Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring for reversed multicast video flow
IGMPv1,v2,v3 with Query mode for multimedia; GMRP**
Factory reset button to restore setting to factory default
Watchdog design to auto reboot switch CPU is found dead
LTDP** (Link Train Discovery Protocol) with Port based DHCP can assign the same IP address and configuration to replacing switches in single ring. It can also keep the config file when switches being swapped
Supports DIDO (2 Digital Input / 2 Digital Output)
Wide range dual input power from 36V to 72V with galvanic isolation
Environmental monitoring for system input voltage, current and ambient temperature.
IP30 metal housing with DIN rail and Wall-mount** design

Future Release
Optional
Optional DDM SFP required

References

Downloads

Documents

Dimension

IES-3424DSFP-2P-PT

24 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet switch

Support PTPv2 two-step transparent clock @ 4 100/1000M ports
IEC 61850-3 & IEEE1613 compliance
Goose monitoring; Built-in MMS server for power SCADA
Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16 MSTI /RSTP
Miss-wiring avoidance & Repowered auto ring restore (node failure protection)
User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82 for Port/Vlan based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3, IPv6, SMS**
USB slot for edited restoration and auto backup

Overview

Lantech IES-3424DSFP-2P-PT is a high performance L2 + managed industrial IEC61850-3 Ethernet switch which provides L2 wire speed and advanced security function for network aggregation and backbone deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms including dynamic coupling ring, and enhanced mode for easy configuration, comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ* (double tag VLAN) which are important features required in train and large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and show on L2 map topology.

The exclusive GOOSE monitoring function (IEC packet) can display the counter of GOOSE message transmitted and received by port. The built-in MMS (Manufacturing Messaging Specification) server can help power SCADA to monitor and control switch by data modeling.

The IES-3424DSFP-2P-PT also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IES-3424DSFP-2P-PT is able to alert with the LED indicator and disable ring automatically. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

DHCP option 82 and relay agent function (Port/Vlan based DHCP distribution) can offer the same IP address on port base or vlan base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network.

The user friendly UI, innovative auto topology drawing and topology demo makes IES-3424DSFP-2P-PT much easier to get hands-on. The IES-3424DSFP-2P-PT supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech’s UI, including optical output power, input power, temperature, laser bias current and transceiver supply voltage***. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance. The complete CLI enables professional engineer to configure setting by command line.

Lantech IES-3424DSFP-2P-PT features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over Vlan for redundant links with 16 MSTI.

The configuration file of Lantech IES-3424DSFP-2P-PT can be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead. The USB slot allows user to backup/ restore configuration.

QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

The IES-3424DSFP-2P-PT DIDO function can support additional open/close physical contact for designate applications besides Port / Power events, for example, DIDO function can trigger alarm if the switch was moved or stolen. In case of events, the IES-3424DSFP-2P-PT will immediately send an email & SMS** text message to pre-defined addresses as well as SNMP Traps out. It provides 2DI and 2DO while disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

Lantech IES-3424DSFP-2P-PT supports dual power inputs from DC9.5~60V, 85~265VAC or 100V~370VDC. It features high reliability and robustness withstanding extensive EMI/RFI phenomenon, lighting surge, inductive load switching, high ESD, high fault current environment usually found in Substation, Steel automation, Mining and Process control etc. IES-3424DSFP-2P-PT can run under widely operational temperature (-40°C~75°C) in the harsh environment.

Technical details

System Interface/Performance
- IEC-61850 & IEEE1613 Compliance
- 24×10/100TX at/af+ 4 100M/1000M SFP L2+
- 16K MAC Address Table
- Dual Power Supply Design for DC(9.5V~60VDC), AC(85V~265VAC) or 100V~370VDC
- -40to 75C operation temperature(-E model)
- FAN less design
Goose monitoring for port counter of Goose message(IEC packets)
MMS server built-in for SCADA monitoring/control
User friendly UI, Auto topology drawing, topology demo, Complete CLI for professional setting
IP v6/v4 supported
Enhanced G.8032 Ring protection in 20ms for single ring
- Support various ring/chain topologies, including dynamic coupling ring
- Enhanced G.8032 ring configuration with ease
- Auto ring configuration(auto mode) for single ring
- Ring covers multicast on different ports
DDM to support SFP diagnostic function***
- Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
256 groups MSTP over VLAN
VLAN
- 4K 802.1Q Vlan, Port Based VLAN,GVRP*GMRP*, QinQ*
Port Trunk with LACP 14 trunks with automatic link failover
LACP link aggregation to add bandwidth
QoS (Quality of Service)
- Supports IEEE 802.1p CoS
- Per port provides 8 priority queues
- Port-base,Tag-base and TOS Priority
- Strict priority and WRR
Security
- SSL/SSH/INGRESS/EGRESS ACL L2/L3
- Port Security: MAC address entries/Filter/MAC-Port binding
- IP Security: IP address security management to prevent unauthorized intruder.
- Management access control with priority
- Login Security: IEEE802.1X/RADIUS
- HTTPS for secure access to the web interface
Miss-wiring avoidance
- LED indicator
Repowered auto ring restore(node failure protection)
- Ensure the switches in a ring to survive after power breakout is back
- The status can be shown in NMS when each switch is back
IGMP v1,v2,v3 and Proxy** for Multi Media Application
IGMP router to select another Query mode and support IGMP static routing for reversed IGMP flow to bind with port for IP surveillance application
Supports IEEE802.1ab LLDP, Cisco CDP
DHCP server / client / Port/Vlan based DHCP distribution / DHCP Option 82 supported
Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
Bandwidth Control
- Ingress Packet Filter and Egress Rate Limit
- Broadcast/Multicast Packet Filter Control
System Event Log, Email alert, SMS**(mobile text) and SNMP Trap for alarm support
TFTP/HTTP firmware upgrade; LantechTM InstaView** for multiple upgrade; USB for edited restoration and auto backup
Reset / Factory default button to restore factory setting
Watch dog design to reboot switch if CPU is found dead
Provides EFT protection ±4K VDC for power line
Supports ±8KV contact & 15KV air Ethernet ESD protection
2 DI/DO and 1 relay contact alarm

Specifications

Hardware Specifications

IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE802.3z Gigabit fiber IEEE 802.3x Flow Control Capability ANSI/IEEE 802.3 Auto-negotiation IEEE 802.1Q VLAN IEEE 802.1p Class of Service IEEE 802.1X Access Control IEEE 802.1D Spanning Tree IEEE 802.1w Rapid Spanning Tree IEEE 802.1s Multiple Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1x User Authentication (Radius) IEEE 1588 Precision Time Protocol v2
Switch Architecture	Back-plane (Switching Fabric): 12.8Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
Mac Address	16K MAC address table
Jumbo frame	10KB on all ports
Connectors	24 10/100TX RJ-45 with auto MDI/MDI-X function 4 100M / 1000M Mini-GBIC : SFP sockets RS-232 console: Female DB-9 USB for backup and restore
DDM	Conform to SFF-8472 to show diagnostic SFP with temperature, current, voltage, input and output power
LED	Per unit: Power 1 (Green), Power 2 (Green), Fault (Red) ,R.M (Green) Link/Activity (Green), Full duplex/collision(Yellow)), MINI GBIC (Link/Activity )(Green)
Power Supply	Two power sockets, 9.5~60VDC input IEC320 85~265VAC input (-AC model) AC/DC 85~265VAC/100V~370VDC input (-HV model)
Power Consumption	Full load: 30W/ Unload: 13W
Relay Alarm	Provides one relay output for port breakdown, power fail and alarm. Alarm Relay current carry ability: 1A @ DC24V
DI/DO	2 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 2 Digital Output(DO): Open collector to 40 VDC, 200mA
Factory reset button & watch dog design	Factory reset button to restore back to factory default settings. Watch dog design can reboot switch automatically when CPU is found dead
Case Dimension	19” Metal case,IP-30; 440mm(W)x325mm(D)x44mm(H)
Operating Humidity	5%~95% (Non-condensing)
Operating Temperature	Standard: -20°C ~60°C Extended temperature : -40°C ~75°C
Storage Temperature	-40°C ~85°C
EMI	FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN55022 Class A, CE EN55024
Stability Testing	IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration), IEC60870-2-2, IEC60068-2-30
Power Automation	IEC 61850-3, IEEE 1613
MTBF	511,958 hours (standards: IEC 62830)
Warranty	5 years

Software Specifications

Management	SNMP v1 v2c, v3/ Web/Telnet/CLI Management
SNMP MIB	RFC 1215 Traps MIB, RFC 1213 MIBII RFC 1158 MIBII RFC 1157 SNMP MIB, RFC 1493 Bridge MIB, RFC 1573 IF MIB RFC 2674 VLAN MIB, Partial RFC 1757 RMON, RFC 2674 Q-Bridge MIB; Bridge MIB, LLDP MIB* RSTP MIB* Private MIB
VLAN	Port based VLAN, up to 28 groups IEEE802.1Q Tag VLAN Static VLAN groups up to 256, VLAN ID from 1 to 4096 GVRP up to 256 groups* GMRP. Multicast VLAN registration, QinQ*
Port Trunk with LACP	LACP Port Trunk: 8 Trunk groups
LLDP	Support LLDP to allow switch to advise its identification and capability on the LAN
CDP	Cisco Discovery protocol for topology mapping
Goose monitoring	Show individual Goose TX / RX counter(IEC packets)
IEC 61850-9-4	Built in MMS server for data modeling for power SCADA
ITU G.8032	Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (basic mode) Support various ring/chain topologies Includes dynamic coupling ring Enhanced G.8032 ring configuration with ease Ring covers multicast on different ports
PTP v2	Support hardware-based IEEE1588 PTP v2, End to End (2-step) and Peer to Peer (2-step) modes in Transparent Clock, with 4 Dual Speed SFP
User friendly UI	Auto topology drawing with detail node info DDM threshold monitoring with dB values*** Complete CLI for professional setting
IPv6/v4	Present
Spanning Tree	Support IEEE802.1d Spanning Tree,IEEE802.1w Rapid Spanning Tree, IEEE 802.1s MSTP
Quality of Service	The quality of service determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points – DSCP
Class of Service	Support IEEE802.1p class of service, per port provides 8 priority queues
QoS by VLAN	Tagged QoS by VLAN for all devices in the network
IP Security	Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
Port Mirror	Support 3 mirroring types: “RX, TX and Both packet”
Multicast Filtering & IGMP	Support IGMP snooping v1,v2,v3; Supports IGMP static route IGMP query and router port 1024 multicast groups and IGMP query
Static MAC-Port bridge	Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
Bandwidth Control	Support ingress packet filter and egress packet limit. The egress rate control supports all of packet type, the limit rates are 0~100Mbps. Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet. The packet filter rate can be set from 0 to 100Mbps The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.
Network Security	Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder. 802.1X access control for port based and MAC based authentication/MAC-Port binding Management access control with priority Ingress/Egress ACL L2/L3 SSL/ SSH for Management HTTPS for secure access to the web interface TACACS+* for Authentication
Protection	Miss-wiring avoidance Repowered auto ring restore (node failure protection) Loop protection
Flow Control	Support Flow Control for Full-duplex and Back Pressure for Half-duplex
System Log	Support System log record and remote system log server
SMTP, SMS**	Supports SMTP Server and 8 e-mail accounts for receiving event alert; can send SMS text alert via mobile; Can send alert via mobile SMS text
SNMP Trap	Up to 10 trap stations; trap types including: Device cold start Authorization failure Port link up/link down DI/DO open/close Typology change(ITU ring) PoE ping failure Power failure
DHCP	Provide DHCP Client/ DHCP Server/DHCP Option 82/Port based&VLAN based DHCP distribution (DHCP relay agent)
Mac based DHCP Server	Assign IP address by Mac that can include dumb switch in DHCP network
DNS	Provide DNS client feature and support Primary and Secondary DNS server.
SNTP	Support SNTP to synchronize system clock in Internet
Firmware Update	Support TFTP /HTTPS firmware update ; InstaView mass firmware upgrade
Configuration backup and restore	Support text backup and restore; USB dongle for firmware auto-backup and edited restoration

Future Release
Optional
Optional DDM SFP required

Downloads

Documentations:

References

P/N	Model name	Description
8388-506	IES-3424DSFP-2P-PT	24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch Built-in 1x isolated DC 12~56VDC power supply + 1x additional PSU slot; -20°C to 60°C
8388-507	IES-3424DSFP-2P-PT-E	24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch Built-in 1x isolated DC 12~56VDC power supply + 1x additional PSU slot; -40°C to 75°C
8388-510	IES-3424DSFP-2P-PT-AC	24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch Built-in 1x isolated AC85~265VAC IEC320 power supply + 1x additional PSU slot; -20°C to 60°C
8388-511	IES-3424DSFP-2P-PT-AC-E	24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch Built-in 1x isolated AC85~265VAC IEC320 power supply + 1x additional PSU slot; -40°C to 75°C
8388-508	IES-3424DSFP-2P-PT-HV	24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch Built-in 1x isolated AC/DC 85~265VAC/100V~370VDC power supply + 1x additional PSU slot; -20°C to 60°C
8388-509	IES-3424DSFP-2P-PT-HV-E	24 10/100TX + 4 Dual SFP L2 plus Industrial IEC61850 Ethernet switch Built-in 1x isolated AC/DC 85~265VAC/100V~370VDC power supply + 1x additional PSU slot; -40°C to 75°C

OPTIONAL ACCESSORIES – Power for System

Model name	Description
EOTH000701	Isolation Power 85-264VAC, 100-370VDC 1.5A, 47-63HZ
EOTH000702	Isolation Power 36-75VDC, 2.5A
EOTH000703	Power 85-264VAC IEC320 socket, 1.5A , 47-63HZ
EOTH000704	Power Input Module 12-56VDC, 2.5A

OPTIONAL ACCESSORIES – Mini GBIC (SFP)

Model name	Description	Model name	Description
8330-162X	MINI GBIC 1000SX (LC/0.5KM) Transceiver	8330-187	LTSFP-1000BX-20KM Transceiver (WDM 1550)
8330-163X	MINI GBIC 1000SX2 (LC/2KM) Transceiver	8330-180	LTSFP-1000BX-40KM Transceiver (WDM 1310)
8330-165X	MINI GBIC 1000LX (LC/10KM) Transceiver	8330-182	LTSFP-1000BX-40KM Transceiver (WDM 1550)
8340-0591	MINI GBIC 1000LHX (LC/40KM) Transceiver	8330-181	LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-166	MINI GBIC 1000XD (LC/50KM) Transceiver	8330-183	LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-169	MINI GBIC 1000XD (LC/60KM) Transceiver	8330-184	LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-167	MINI GBIC 1000ZX (LC/80KM) Transceiver	8330-185	LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-170	MINI GBIC 1000EZX (120KM) Transceiver	8330-071	125Mbps BiDi SFP 2KM (WDM 1310) Transceiver
8330-168	MINI GBIC 10/100/1000T (100m) Transceiver	8330-072	125Mbps BiDi SFP 2KM (WDM 1550) Transceiver
8330-060	100Base FX 2KM, Multi-mode, LC Transceiver	8330-069	125Mbps BiDi SFP 20KM (WDM 1310) Transceiver
8330-065	100Base FX 5KM, Multi-mode, LC Transceiver	8330-068	125Mbps BiDi SFP 20KM (WDM 1550) Transceiver
8330-061	100Base LX 30KM, Single-mode, LC Transceiver	8330-080	125Mbps BiDi SFP 40KM (WDM 1310) Transceiver
8330-197	1.25Gbps BiDi SFP 0.5KM Transceiver (WDM 1310)	8330-082	125Mbps BiDi SFP 40KM (WDM 1550) Transceiver
8330-198	1.25Gbps BiDi SFP 0.5KM Transceiver (WDM 1550)	8330-081	125Mbps BiDi SFP 60KM (WDM 1310) Transceiver
8330-195	1.25Gbps BiDi SFP 2KM Transceiver (WDM 1310)	8330-083	125Mbps BiDi SFP 60KM (WDM 1550) Transceiver
8330-196	1.25Gbps BiDi SFP 2KM Transceiver (WDM 1550)	8330-084	125Mbps BiDi SFP 80KM (WDM 1310) Transceiver
8330-188	1.25Gbps BiDi SFP 10KM Transceiver (WDM 1310)	8330-085	125Mbps BiDi SFP 80KM (WDM 1550) Transceiver
8330-189	1.25Gbps BiDi SFP 10KM Transceiver (WDM 1550)	8330-191	Dual Speed SFP 100M/1000M-LX 10KM Transceiver
8330-186	1.25Gbps BiDi SFP 20KM Transceiver (WDM 1310)	All SFP P/N# ended with D are with DDM function

IPES IES 5416T

16 10/100TX + 4 10/100/1000T X-coded L2+ 8 PoE at/af Industrial Managed Switch w/ enhanced G.8032 Ring & PTP

Support PTPv2 two-step transparent clock @ 4 10/100/1000T ports
EN50155/61373/45545-2 verification
IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling
Optional 12V input boost to 54V output for IEEE802.3at/af max.80W
Optional 72V input steps down to 48V output for IEEE 802.3at/af max.80W
Optional 110V input to 48V output for IEEE 802.3at/af max.80W
Enhanced G.8032 ring protection < 20ms with auto mode, enhanced mode, train mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP
Relay contact & environmental monitoring
Miss-wiring avoidance; Repowered auto ring restore (node failure protection)
IP67/IP54 housing; User friendly UI, including auto topology drawing; Complete CLI
N-key configurator** for upgrading, auto/editable configuration back up and restoration without computer
Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82 for Port&VLAN based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3, IPv6, SMS

Overview

OVERVIEW

Lantech IPES-5416T-8-X (IP67/IP54) is a high performance L2+ (Gigabit uplink) switch with 16 10/100TX(d-coded) + 4 10/100/1000T(x-coded) w/8 PoE 802.3af/at Injectors by M12 provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms including train coupling ring , and enhanced mode for easy configuration, comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ* (double tag VLAN) which are important features required in train and large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and show on L2 map topology.

Lantech IPES-5416T-8-X (IP67/IP54) features hardware-based PTP IEEE1588 v2 two-step function which can allow 4 10/100/1000T uplinks to synchronize the network with precise accuracy.

Lantech IPES-5416T-8-X (IP67/IP54) supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, High power wireless AP etc. The advanced PoE management includes PoE detection and scheduling besides the regular PoE per port status. PoE detection can detect if the connected PD is hang up then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Per port PoE status can remotely On/Off the power and display information of voltage, current, watt and PoE temperature.

The Lantech IPES-5416T-8-X (IP67/IP54) series is designed with various dual power input at 12/24/48VDC input (12V model), 72V input to feed 48V PoE (72V model). The 110V model can accept dual 110V to feed 48V POE and feed PoE power 48V at PoE budget max 80W. Featured with relay contact alarm function, the IPES-5416T-8-X (IP67/IP54) is able to connect with alarm system in case of power failure or port disconnection events. The IPES-5416T-8-X (IP67/IP54) also provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet.

The IPES-5416T-8-X (IP67/IP54) also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPES-5416T-8-X (IP67/IP54) is able to alert with the LED indicator and send out an email, traps or a SMS text. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

DHCP option 82 and relay agent function (port&vlan based DHCP distribution) can offer the same IP address on port base or vlan base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network.

Lantech InstaConfig software** provides easy configuration for mass deployment. The configuration file can also be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The built-in watchdog design can automatically reboot the switch when cpu is found dead.

The user friendly UI, innovative auto topology drawing and topology demo makes IPES-5416T-8-X (IP67/IP54) much easier to get hands-on. The switch also equips the RTC (real time clock) which can keep track of time always. The complete CLI enables professional engineer to configure setting by command line.

Lantech IPES-5416T-8-X (IP67/IP54) features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over Vlan for redundant links with 16 MSTI. The ITU G.8032 Ring and RSTP can be co-existed in the same switch with different ports for the most flexible protection.

The configuration file of Lantech IPES-5416T-8-X (IP67/IP54) can be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The optional N-key configurator offers firmware upgrade, auto/editable configuration back up and restoration without computer by adjusting the DIP switch.

QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

In case of event alarm, the IPES-5416T-8-X (IP67/IP54) will immediately send an email & SMS text message to pre-defined addresses as well as SNMP Traps out. It provides 1DI and 1DO while disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

The built-in environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email and SMS alert when abnormal.

The IPES-5416T-8-X (IP67/IP54) is designed to meet with critical network environment with IP67/IP54 aluminum enclosure and M12 connectors for water proof. It passed serious tests under extensive Industrial EMI and Safety standards. With EN45545-2 Fire & Smoke, and EN50155 verification, the IPES-5416T-8-X (IP67/IP54) is best for railway and vehicle applications. For more usage flexibilities, IPES-5416T-8-X (IP67/IP54) supports wide operating temperature from -40°C to 75°C.

The optional bypass relay is set to bypass the switch to the next one in 4ms when power is off in order to protect the network from crashing. Lantech bypass caters to remain in bypass mode until the switch is completely booting up when power is back to avoid another network lost. The bypass is also activated when detecting the CPU watchdog is ON.

Features

FEATURES

16 10/100TX d-coded + 4 10/100/1000T x-coded w/8 PoE 802.3af/at Injectors Industrial Managed IP67 M12 Switch (Total 20 Ports Switch)
EN45545-2 Fire & Smoke, EN50155 and EN61373 shock/vibration verification
IEEE802.3at/af feeding power up to 30W per PoE port at 45~56VDC at port 1-8
PoE management including PoE detection and scheduling for PD (power devices)
12V model can accept dual 12V power input and boost to 54V for PoE 802.3at/af max 80W budget
72V model can accept dual 50.4~90V power input and feed 48V for PoE at/af at max 80W budget
110V model can accept dual 43V~137.5V inputs and feed 48V for PoE at/af at max 80W budget
IEEE 1588 PTP v2 two-step at 4 Giga ports
Back-plane (Switching Fabric): 11.2Gbps
16K MAC address table
10KB Jumbo frame supported on all ports
User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
Enhanced G.8032 Ring protection in 20ms < 256 switches
- Support various ring/chain topologies, including train dynamic coupling ring
- Enhanced G.8032 ring configuration with ease
- Auto ring configuration(auto mode) for single ring
- Co-exist with RSTP on different ports
Provides EFT protection ±2000 VDC for power line.
Supports ±6000 VDC Ethernet ESD protection
LACP load balancing to distribute the load*
Built-in RTC (Real Time Clock) to keep track of time
Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority
IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy
4K 802.1Q VLAN, Port based VLAN, GVRP**, QinQ*
Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaConfig**/ LantechTM InstaView**
DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server for Port&Vlan based DHCP distribution
Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
Bandwidth Control
- Ingress packet filter and egress rate limit
- Broadcast/multicast packet filter control
Relay alarm output system events
Miss-wiring avoidance
- LED indicator
- Email, traps, or SMS notification
Repowered auto ring restore
- Ensure the switches in a ring to survive after power breakout is back
- The status can be shown in NMS when each switch is back
TFTP/HTTP firmware upgrade; LantechTM InstaConfig** for multiple upgrade
System Event Log, SMTP Email alert, SMS mobile (text) and SNMP Trap for alarm support; 32 RMON counters
Security
- SSL/SSH/INGRESS/EGRESS ACL L2/L3
- Port Security: MAC address entries/Filter/MAC-Port binding
- IP Security: IP address security management to prevent unauthorized intruder.
- Management access control with priority
- Login Security: IEEE802.1X/RADIUS
- HTTPS for secure access to the web interface
Static multicast forwarding forward reversed IGMP flow (MVR) with multicast packets binding with ports for IP surveillance application
Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring and for reversed multicast video flow
Multicast VLAN registration* for metro video
IGMPv1,v2,v3 with Query mode for multi media; GMRP**
N-key** configurator for firmware upgrade, auto/editable configuration back up and restoration
Watchdog design to auto reboot switch CPU is found dead
Built-in environmental monitoring for system input voltage, current, ambient temperature
Supports DIDO (Digital Input/Digital Output)
IP67 aluminum housing with wall mount and DIN rail** design; IP54 aluminum housing with wall mount design
Bypass protection** – Bypass failed switch caused by power failure of switch to protect network intactness

Downloads

Download

Datasheet

User Manual ( Hardware )

References

With Bypass Protection

P/N	Model name	Description
8361-6179	IPES-5416T-8-X-67-B	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C; w/ 1 pair GigaT bypass protection
8361-6049	IPES-5416T-8-X-67-BB	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C; w/ 2 pair GigaT bypass protection
8361-6189	IPES-5416T-8-X-67-12V-B	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C; w/ 1 pair GigaT bypass protection; 12V~48V dual input; 80W@12V; 120W@24V
8361-6059	IPES-5416T-8-X-67-12V-BB	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C; w/ 2 pair GigaT bypass protection; 12V~48V dual input; 80W@12V; 120W@24V
8361-6159	IPES-5416T-8-X-67-72V-B	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 60°C; w/ 1 pair GigaT bypass protection; 50.4~90V dual input 80W PoE
8361-6069	IPES-5416T-8-X-67-72V-BB	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 60°C; w/ 2 pair GigaT bypass protection; 50.4~90V dual input 80W PoE
8361-6178	IPES-5416T-8-X-54-B	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C; w/ 1 pair GigaT bypass protection
8361-6048	IPES-5416T-8-X-54-BB	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C; w/ 2 pair GigaT bypass protection
8361-6188	IPES-5416T-8-X-54-12V-B	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C; w/ 1 pair GigaT bypass protection; 12V~48V dual input; 80W@12V; 120W@24V
8361-6058	IPES-5416T-8-X-54-12V-BB	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C; w/ 2 pair GigaT bypass protection; 12V~48V dual input; 80W@12V; 120W@24V
8361-6158	IPES-5416T-8-X-54-72V-B	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 60°C; w/ 1 pair GigaT bypass protection; 50.4~90V dual input 80W PoE
8361-6068	IPES-5416T-8-X-54-72V-BB	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 60°C; w/ 2 pair GigaT bypass protection; 50.4~90V dual input 80W PoE

Without Bypass Protection

P/N	Model name	Description
8360-6179	IPES-5416T-8-X-67	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C
8360-6189	IPES-5416T-8-X-67-12V	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C; 12V~48V dual input; 80W@12V; 120W@24V
8360-6159	IPES-5416T-8-X-67-72V	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 60°C; 50.4~90V dual input 80W PoE
8360-7379	IPES-5416T-8-X-67-110V	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP67 Switch; -40°C to 75°C; 43~137.5V dual input 80W PoE
8360-6178	IPES-5416T-8-X-54	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C
8360-6188	IPES-5416T-8-X-54-12V	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C; 12V~48V dual input; 80W@12V; 120W@24V
8360-6158	IPES-5416T-8-X-54-72V	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 60°C; 50.4~90V dual input 80W PoE
8360-7378	IPES-5416T-8-X-54-110V	16 10/100TX 8 PoE at/af up to 30W + 4 Giga T PTP L2+ Managed Industrial PoE M12 IP54 Switch; -40°C to 75°C; 43~137.5V dual input 80W PoE

Optional accessories

odel name	Description
ECONM23-5P(F)70CM CABLE	M23 power cable 90 degree angle, 70cm, 5 pin, Made in Taiwan
ECONM23-5P(F)70CM CABLE-C	M23 power cable 90 degree angle, 70cm, 5 pin, Made in China
ECAB124030MJS	4 Pin M12 RJ45 Male 3 Meters; STP Cable
ECABM12X83MSTP	8 Pin M12 X-coded RJ45 Male 3 METER, STP CABLE w/ Shielding

Training

Training on demand available

Specifications

SPECIFICATIONS

Hardware Specifications

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1X User Authentication (Radius) IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE802.3at/af Power over Ethernet
Switch Architecture	Back-plane (Switching Fabric): 11.2Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
CPU	Marvell 800Mhz
RAM	256M Byte
Flash	128M Byte
Mac Address	16K MAC address table
Jumbo frame	10KB on all ports
Connectors	10/100TX: 16 x ports M12 4-pole D-coded with Auto MDI/MDI-X function 10/100/1000T: 4 x ports M12 8-pole X-coded with Auto MDI/MDI-X function RS-232 connector: 1 x M12 5-pole A-coded Power Input connector : 1 x M23 5-pole A-coded Relay contact : 1 x M12 5-pole A-coded
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-T: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)
Bypass Protection**	High-speed optical switching (<4ms) Minimal insertion loss (Max 1.6dB as Bypass Mode)
Protocol	CSMA/CD
LED	Per unit: Power 1 (Green), Power 2 (Green), Fault (Red), RM (Green) Ethernet port: Link/Activity (Green), Speed (Green); Optical fiber: Link/Activity (Green)
DI/DO	1 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 1 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-40°C~75°C / -40°F~167°F (72V model: -40°C~60°C / -40°F~140°F)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	44~57VDC on standard model 9.5~57VDC on 12V model 50.4~90VDC on 72V model 43~137.5VDC on 110V model with input isolation
PoE Budget	240W for 44~57V input (55V input is recommended for 802.3at 30W applications) 80W for 12V input 120W for 24V input 80W for 72V/110V Input
PoE pin assignment	M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.
Power Consumption	Max. 13W 12V~48VDC input Max. 16W 72VDC/110VDC input
Case Dimension	IP67 Aluminum case 285mm(W)x200mm(H)x84.4mm(D) IP54 Aluminum case 250mm(W)x179mm(H)x82mm(D)
Weight	2.1kgs(IP67) 1.8kgs(IP54)
Installation	IP67 model: DIN Rail** and Wall Mount Design IP54 model: Wall Mount Design
EMI & EMS	FCC Class A, CE EN55022 Class A, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11
Stability Testing	IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)
MTBF	217,019 hrs
Verifications & report	EN50155/EN50121-3-2/EN50121-4 verification EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke verification
Safety	EN 60950-1 (Standard model and 110V model)
Warranty	5 years

Software Specifications

Management	SNMP v1 v2c, v3/ Web/Telnet/CLI
SNMP MIB	RFC 1215 Traps MIB, RFC 1213 MIBII RFC 1158 MIBII RFC 1157 SNMP MIB, RFC 1493 Bridge MIB, RFC 1573 IF MIB RFC 2674 VLAN MIB, Partial RFC 1757 RMON, RFC 2674 Q-Bridge MIB; Bridge MIB, LLDP MIB* RSTP MIB* Private MIB
ITU G.8032	Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (basic mode) Support various ring/chain topologies Includes train dynamic coupling ring Enhanced G.8032 ring configuration with ease Co-exist with RSTP on different ports
PoE Management	PoE Detection to check if PD is hang up then restart the PD PoE Scheduling to On/OFF PD upon routine time table On/ Off, voltage, current, watts, temperature
PTP v2	Support hardware-based IEEE1588 PTP v2, End to End (2-step) and Peer to Peer (2-step) modes in Transparent Clock, with 4 10/100/1000T
User friendly UI	Auto topology drawing Topology demo Auto configuration for G.8032(auto mode) for single ring Complete CLI for professional setting
Port Trunk with LACP	LACP Port Trunk: 8 Trunk groups/Maximum 16 trunk members
LLDP	Supports LLDP to allow switch to advise its identification and capability on the LAN
CDP	Cisco Discovery Protocol for topology mapping
Environmental Monitoring	System status for input voltage, current and ambient temperature to be shown in GUI and sent alerting if any abnormal status
VLAN	Port Based VLAN IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096.) GVRP(256 groups)*, QinQ
IPv6/4	Present
Spanning Tree	Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree
Quality of Service	The quality of service determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points – DSCP
Class of Service	Support IEEE802.1p class of service, per port provides 8 priority queues
QoS by VLAN	Tagged QoS by VLAN for all devices in the network
IP Security	Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
Login Security	Supports IEEE802.1X Authentication/RADIUS
Port Mirror	Support 3 mirroring types: “RX, TX and Both packet”
Network Security	Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder. 802.1X access control for port based and MAC based authentication/MAC-Port binding Management access control with priority Ingress/Egress ACL L2/L3 SSL/ SSH for Management HTTPS for secure access to the web interface TACACS+ for Authentication
IGMP	Support IGMP snooping v1,v2,v3; Supports IGMP static route; 256 multicast groups; IGMP router port ; IGMP query; GMRP**
MVR	Static multicast forwarding forward reversed IGMP flow (MVR) with multicast packets binding with ports for IP surveillance application
Bandwidth Control	Support ingress packet filter and egress packet limit. The egress rate control supports all of packet type. Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet. The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.
RTC	Built-in Real Time Clock to keep track of time always
Flow Control	Supports Flow Control for Full-duplex and Back Pressure for Half-duplex
System Log	Supports System log record and remote system log server
SMTP/Text SMS	Supports SMTP Server and 8 e-mail accounts for receiving event alert; can send SMS text alert via mobile
Relay Alarm	Provides one relay output for port breakdown, power fail and alarm. Alarm Relay current carry ability: 1A @ DC24V
Protection	Miss-wiring avoidance Repowered auto ring restore Loop protection
SNMP Trap	Up to 10 trap stations; trap types including: Device cold start Authorization failure Port link up/link down DI/DO open/close Typology change(ITU ring) PoE ping failure Power failure Environmental abnormal
DHCP	Provide DHCP Client/ DHCP Server/DHCP Option 82/ DHCP Option 82 server/ Port based&VLAN based DHCP distribution (DHCP relay agent)
Mac based DHCP Server	Assign IP address by Mac that can include dumb switch in DHCP network
DNS	Provide DNS client feature and support Primary and Secondary DNS server.
SNTP	Supports SNTP to synchronize system clock in Internet
Firmware Update	Supports TFTP firmware update, TFTP backup and restore; HTTP firmware upgrade; LantechTM InstaConfig** for multiple upgrade
N-Key Configurator**	RJ45 dongle for firmware upgrade, auto / editable configuration backup/restoration
Configuration upload and download	Supports text configuration file for system quick installation
IfAlias	Each port allows an alphabetic string of 128-byte assigned as its own unique name via the SNMP or CLI interface

*Future release
**Optional

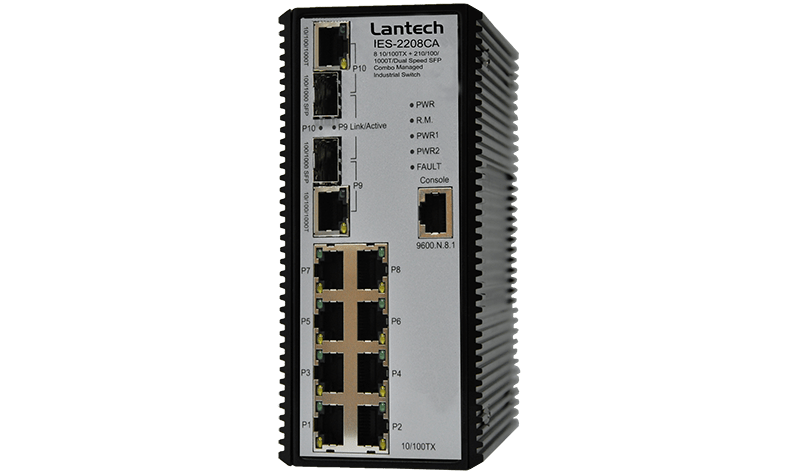

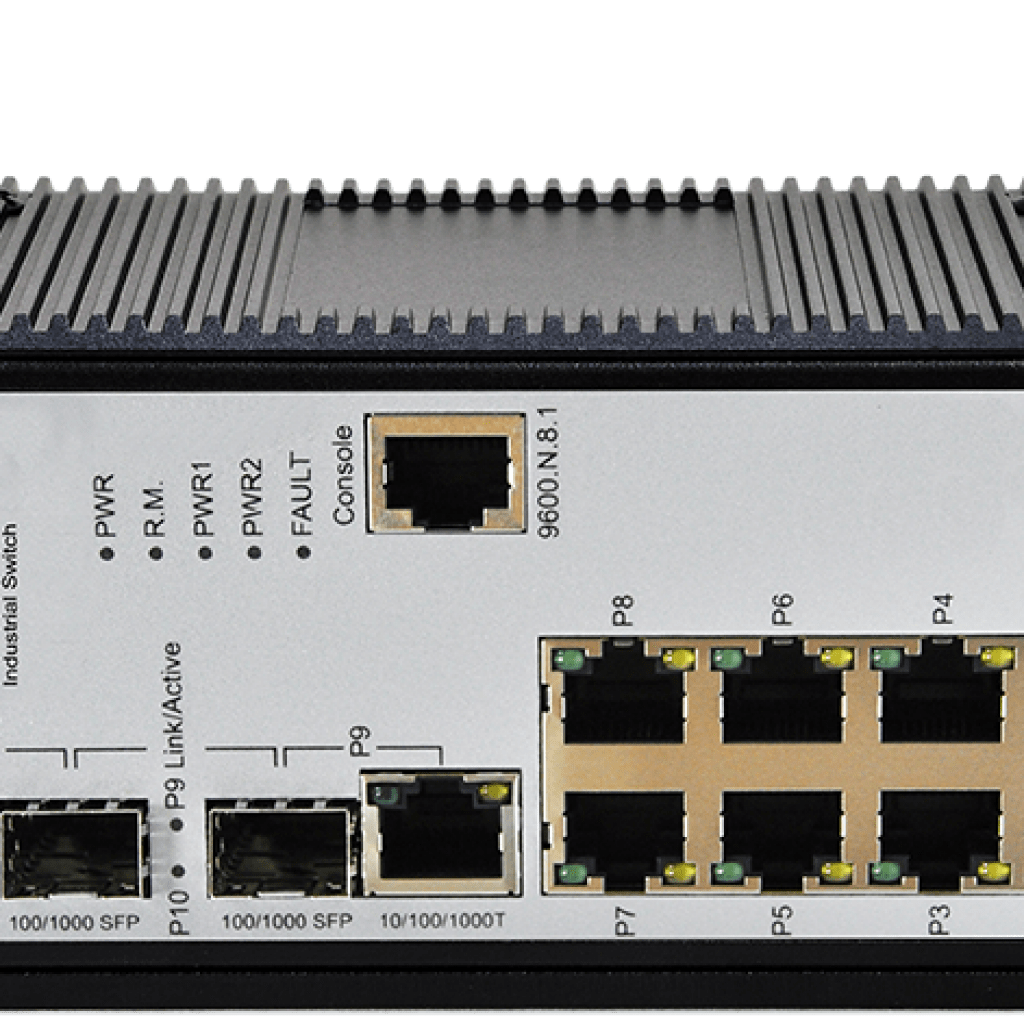

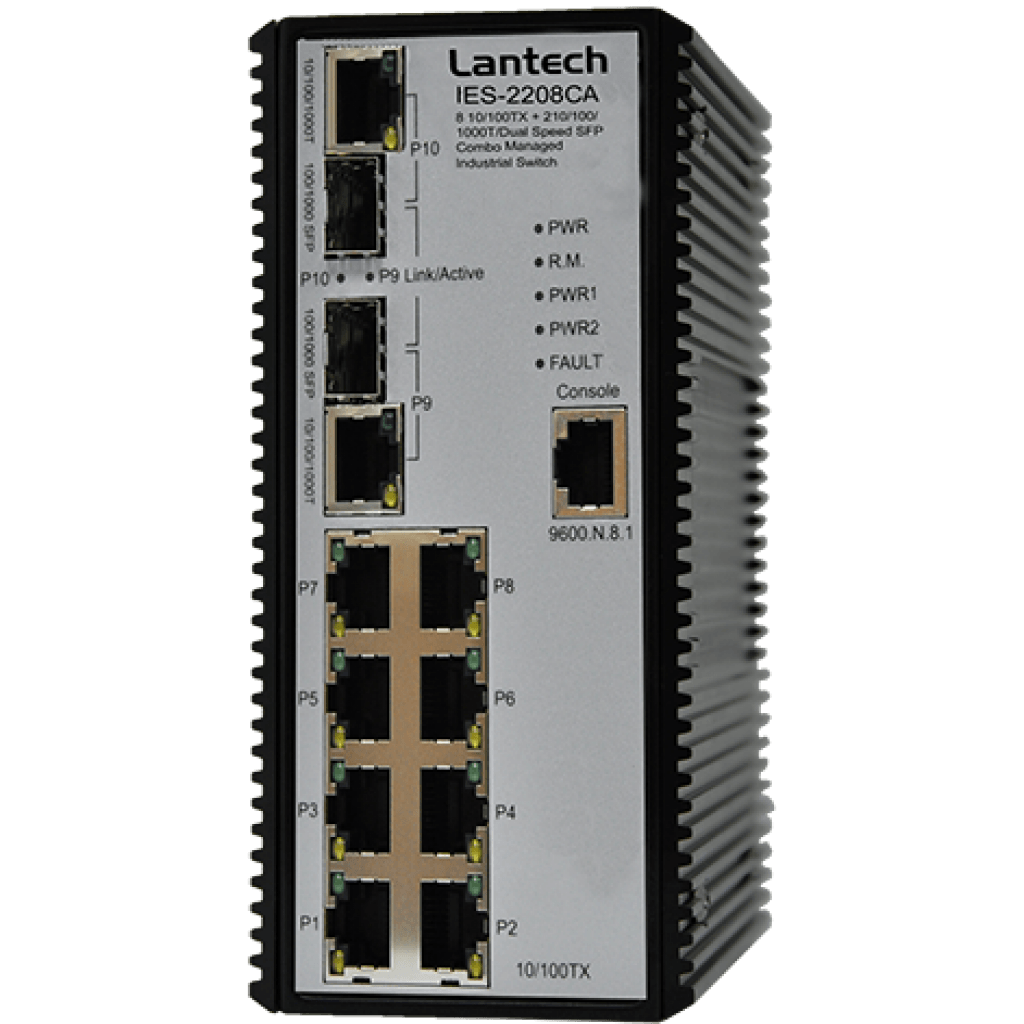

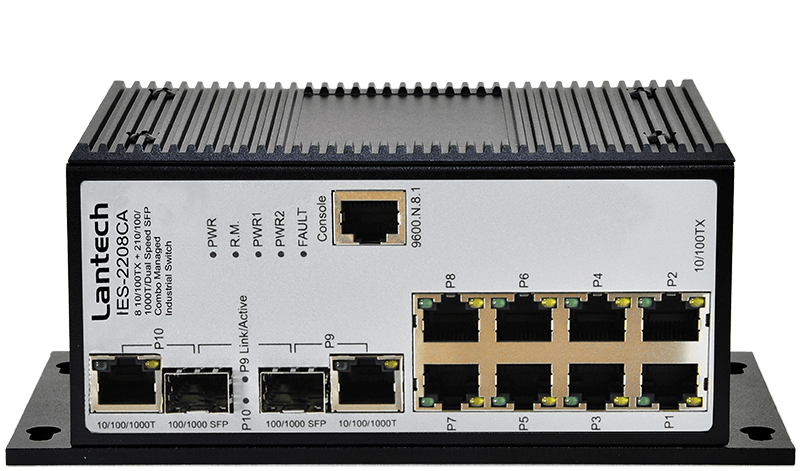

IES-2208CA

8 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo Industrial Managed Switch

UL Class I Division II pour les groupes certifiés: A,B,C et D
Directive ATEX 94/9/EC certifié (- model ATEX uniquement)
“Pro-Ring2se” pour anneaux “self-heal” <20ms
Support élaboré SNMP incluant QoS, IGMP query & source uniquement, DDM***, CPU ( charge processeur )
Fonction “Factory Default” pour revenir à la configuration de base
Certification DNV Type approuvé pour navire , hors bord et plateforme “Off-Shore”

Général

OVERVIEW

The Lantech IES-2208CA est un switch administrable 8-port 10/100BaseTX + 2-port 10/100/1000T/Dual Speed SFP Combo, avec Pro-Ring2se self-recovery en moin de 20ms. La connexion SFP est disponible pour des vitesses de 100M ou 1000M. Les fonctions avancées SNMP, inclu un QoS à 4 segments , 802.1q VLAN, IGMP snooping, query and source only pour surveillance Multicast IP, également DDM*** comme fonction “ping” Web, Charge CPU, SNTP et SMTP etc.

The Pro-Ring2se self-recovery scheme can recover Ring network in less than 20ms with single ring up to 50 switches with one step setup. Lantech IES-2208CA builds all the important management features required in large network like DHCP Client/Server, 802.1X authentication, IGMP Query / Snooping, and advanced QoS. The exclusive source only function is good for reverse multicast flow which can automatically select the query (router port) in a ring for IP surveillance application. It also supports Ping commands via Web to detect whether a specific device is still connected for easy trouble-shooting.

The IES-2208CA has the relay contact that is able to connect with alarm system and send Email and SNMP trap alert in case of power or port failure. It also has the built-in factory reset button can restore all setting back to factory default.

The IES-2208CA is designed to meet with critical network environment with IP 30 enclosure and test under extensive Industrial EMI and Safety standards. With UL Class I Division II / ATEX Directive 94/9/EC approval, the IES-2208CA can be implemented in hazardous or explosive condition without accelerating the damage. It’s the best choice for inflammable environment where the liquid, gas and vapor etc might present the hazardous condition which generally to be find in mining, oil & gas, chemical, processing automation areas. It’s also suitable for surveillance, factory automation, transportation, telecom / ISP outside terminal, heavy industrial factory and other factory assembly lines.

The -E / -ATEX / DNV model can be used in extreme environments with an operating temperature range of -40°C to 75°C.

The Lantech IES-2208CA-DNV meets with the most critical test criteria in DNV Type* test directives consisting of MED (Marine Equipment Directive), EMC (Electromagnetic Compatibility Directive) and LVD (Low Voltage Directive) in which vibration, high voltage, compass safe distance, salt mist tests, humidity etc are conducted to ensure the switch sustaining the harsh on-board environments often founded in Ships, Crafts and Offshore platforms.

Détails techniques

FEATURES

Pro-Ring2se for self-recovery scheme in less than 20ms for single-ring with one setup
SFP slot supports 100/1000 Dual Mode with DDM*** for SFP diagnostic and monitoring
Back-plane (Switching Fabric): 5.6Gbps
1Mbits Packet Buffer / 8K MAC address table
UL Class I Division II for Group A,B,C and D certified
ATEX Directive 94/9/EC certified (-ATEX model)
IP30 metal housing with DIN rail and Wall-mount** design
Provides EFT protection ±2000 VDC for power line
Supports ±6000 VDC for ESD protection
Support CPU load monitoring and Web Ping to check if the connected device is alive
IEEE 802.1d Spanning Tree & IEEE 802.1w RSTP
IGMP with Snooping and Query mode for Multi Media Application
IGMP source only for reverse multicast application
Static Multicast Route for non-IGMP application
Port Based VLAN, 802.1Q Tag VLAN, GVRP
Port Trunk with LACP
Supports IEEE 802.1ab LLDP
Supports IEEE 802.1p CoS, 4 priority queues per port
Port base, Tag Base and Type of Service Priority
Supports Ingress Packet Filter and Egress Rate Limit
Supports Broadcast/Multicast Packet Filter Control
Port Mirror: Monitor traffic in switched networks
- TX, RX, Both of TX and RX Packet
System Log Server/Client
SMTP e-mail Alert up to 6 emails
Security
- Port Security: MAC address entries/Filter
- IP Source Guard: IP address security management to prevent unauthorized intruder
- Login Security: IEEE802.1X/RADIUS;SSH* / SSL*
SNMP Trap
- Device cold start, Power status, Authentication failure, Port Link up/Link down
Relay Alarm Output System Events
TFTP & Web Firmware Update & System Configure Restore/Backup;
Factory reset bottom can restore all setting back to factory default
DNV Type Approved* for Ships, Craft and Off-shore Platforms

Numéro de référence

P/N	Model name	Description
8350-451	IES-2208CA	8 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo Managed Industrial Switch; -20°C to 60°C
8350-452	IES-2208CA-E	8 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo Managed Industrial Switch; -40°C to 75°C
8350-451-DLR	IES-2208CA-DLR	8 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo Managed Industrial Switch; -20°C to 60°C; DLR
8350-452-DLR	IES-2208CA-DLR-E	8 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo Managed Industrial Switch; -40°C to 75°C; DLR
8350-452-ATEX	IES-2208CA-ATEX	8 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo Managed Industrial Switch; -40°C to 75°C; ATEX Directive 94/9/EC

OPTIONAL ACCESSORIES – DIN Rail Power

Model name	Description
AD1048-24FS	24VDC, 2A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 18 Watts at 75°C.)
AD1024-24F	24VDC, 1A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 9 Watts at 75°C.)
AD1240-48S	48VDC, 5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
AD1120-48F	48VDC, 2.5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)

OPTIONAL ACCESSORIES – Mini GBIC (SFP)

Model name	Description	Model name	Description
8330-162	MINI GBIC 1000SX (LC/0.5km) Transceiver	8330-188	LTSFP-1000BX-10KM Transceiver (WDM 1310)
8330-163	MINI GBIC 1000SX2 (LC/2km) Transceiver	8330-189	LTSFP-1000BX-10KM Transceiver (WDM 1550)
8330-165	MINI GBIC 1000LX (LC/10km) Transceiver	8330-186	LTSFP-1000BX-20KM Transceiver (WDM 1310)
8340-0591	MINI GBIC 1000LHX (LC/40km) Transceiver	8330-187	LTSFP-1000BX-20KM Transceiver (WDM 1550)
8330-166	MINI GBIC 1000XD (LC/50km) Transceiver	8330-180	LTSFP-1000BX-40KM Transceiver (WDM 1310)
8330-169	MINI GBIC 1000XD (LC/60km) Transceiver	8330-182	LTSFP-1000BX-40KM Transceiver (WDM 1550)
8330-167	MINI GBIC 1000ZX (LC/80km) Transceiver	8330-181	LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-170	MINI GBIC 1000EZX (120km) Transceiver	8330-183	LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-060	100Base FX 2KM, Multi-mode, LC Transceiver	8330-184	LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-065	100Base FX 5KM, Multi-mode, LC Transceiver	8330-185	LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-061	100Base LX 30KM, Single-mode, LC Transceiver	8330-168	MINI GBIC 1000T (100m) Transceiver

All SFP P/N# ended with D are with DDM function

Formation

Téléchargement

Brochure

Manuel utilisateur

Accessoires

IGS-0008B

8 10/100/1000T Industrial Unmanaged Switch

Supports 10K bytes jumbo frame
Wide-range dual isolated power 9.5~60V input
Provides ESD/ EFT protection; Voltage transient protection
DIN rail and wall mount** design with IP30 enclosure

Aperçu

Le switch Lantech IGS-0008B, est un switch 8-Port 10/100/1000T Industriel. Afin d’augmenter la fiabilité, il fournit une alimentation redondante, detecte la tension d’entée et accèpte une tension étendue de 9.5v à 60VDC.

Pour une meilleure stabilité et performance, le IGS-008B supporte les trames “jumbo ” jusqu’à 10k Octet.

Le IGS -0008B, est conçu pour satisfaire les demandes les plus exigentes de l’industrie et est fournit avec un boitier IP30. Il a été testé pour satisfaire les exigence de compatibilité electromagnetique et interférences. C’est un switch robuste, anti choc, stabilité aux tests de vibration.

IGS-0008B is compact in size and easy to be installed with DIN rail and wall mount** kits. IGS-0008B is applicable in many kinds of industrial environments.

Détails techniques

Hardware Specifications

Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE802.3x Flow Control and Back Pressure
Switch Architecture	Back-plane (Switching Fabric): 16Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
Mac Address	16K MAC address table
Jumbo Frame	10Kbytes
Connectors	10/100/1000T: 8 x RJ-45
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m)
Protocol	CSMA/CD
LED	Per unit: Power 1 (Green), Power 2 (Green), Fault(Amber) Per port: Link/Activity (Green), Speed (1000Mbps Amber)
Reserve polarity protection	Present
Power Supply	9.5~60 VDC, Dual isolated input with removable terminal block
Power Consumption	5 Watts
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F (-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Case Dimension	Metal case. IP30, 35mm (W) x 152mm (H) x 105mm (D)
Installation	DIN Rail and Wall Mount** Design
EMI & EMS	FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN55022 Class A, CE EN55024
Stability Testing	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
Warranty	5 years

Numéro de référence

P/N	Modèle	Description
8350-835	IGS-0008B	8 10/100/1000T Switch Industriel, Utilisation “Standard” de Temperature (-20°C~60°C)
8350-836	IGS-0008B-E	8 10/100/1000T Switch Industriel, Utilisation en température “étendu” (-40°C~75°C)

ACCESSOIRES OPTIONNELS

Nom du Modele	Description
AD1048-24FS	24VDC, 2A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 18 Watts at 75°C.)
AD1024-24F	24VDC, 1A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 9 Watts at 75°C.)
AD1240-48S	48VDC, 5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
AD1120-48F	48VDC, 2.5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)

Formation

Pas de formation particulière sur un switch non administrable.

Formation disponible sur switches administrables. – N’hésitez pas à nous contacter.

Téléchargement

Brochure

Manuel utilisateur ( Hardware )

IGS-3408DSFP

IGS-3408DSFP : Switch LANTECH managed

8 10/100/1000T + 4 100/1000M SFP L2+ Industrial Managed Switch w/PTP V2

IGS-3804DSFP : Switch LANTECH manageable

Support PTPv2 two-step transparent clock @ all ports
Enhanced G.8032 ring protection < 20ms with auto mode, enhanced mode, train mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP
Miss-wiring avoidance & Repowered auto ring restore (node failure protection)
User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82 for Port&VLAN based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, ACL, IPv6, SMS
Environmental Monitoring for temp., voltage & current**

rohs itu-ring ptp-v2 e-monitoring

Aperçu

OVERVIEW

Lantech IGS-3408DSFP is a high performance L2+ (Gigabit uplink) switch with 8 10/100/1000T + 4 1000M SFP which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms including dynamic coupling ring, enhanced mode for easy configuration and aggregation ring*, comprehensive QoS, QoS by VLAN, advanced security including ACL L2/L3, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ* (double tag VLAN) which are important features required in train and large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and show on L2 map topology.

Lantech IGS-3408DSFP features hardware-based PTP IEEE1588 v2 two-step function which can allow 8 10/100/1000T and 4 100/1000 SFP uplinks to synchronize the network with precise accuracy (under 1μs). It has RTC (Real Time Clock) inside that can keep track of current time.

The IGS-3408DSFP also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IGS-3408DSFP is able to alert with the LED indicator and send out an email, traps or a SMS text. Repowered auto ring restore function (node failure protection) ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

DHCP option 82 and relay agent function (port&vlan based DHCP distribution) can offer the same IP address on port base or vlan base where there is need to replace the new device connecting to Lantech switches to avoid any network disruption. The built-in DHCP Option 82 server offers the convenience of policy setting on the switch. Mac based DHCP server function assigns an IP address according to its MAC address to include dumb switches in DHCP network.

The user friendly UI, innovative auto topology drawing and topology demo makes IGS-3408DSFP much easier to get hands-on. The switch also equips the RTC (real time clock) which can keep track of time always. The IGS-3408DSFP supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech’s UI, including optical output power, input power, temperature, laser bias current and transceiver supply voltage***. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance. The complete CLI enables professional engineer to configure setting by command line.

Lantech IGS-3408DSFP features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over Vlan for redundant links with 16 MSTI. The ITU G.8032 Ring and RSTP can be co-existed in the same switch with different ports for the most flexible protection.

The configuration file of Lantech IGS-3408DSFP can be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when CPU is found dead.

QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

The IGS-3408DSFP DIDO function can support additional open/close physical contact for designate applications besides Port / Power events, for example, DIDO function can trigger alarm if the switch was moved or stolen. In case of events, the IGS-3408DSFP will immediately send an email & SMS text message to pre-defined addresses as well as SNMP Traps out. It provides 2DI and 2DO while disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

The optional environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email and SMS alert when abnormal.

The Lantech IGS-3408DSFP is designed with dual power supply at 24/48VDC or single power supply at 90~305VAC/120~430VDC. Featured with relay contact alarm function, the IGS-3408DSFP is able to connect with alarm system in case of power failure. The IGS-3408DSFP also provides ±4000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet.

Lantech IGS-3408DSFP features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.

The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.

Détails techniques

8 10/100/1000T + 4 1000M SFP (Total 12 Ports Switch)
IEEE 1588 PTP v2 two-step (under 1μs)
Back-plane (Switching Fabric): 24Gbps
16K MAC address table
DDM to support SFP diagnostic function***
- Automatically convert the raw data into dB values for TX power/RX power, making it easier to measure the fiber distance
9KB Jumbo frame supported on all ports
User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
Enhanced G.8032 Ring protection in 20ms < 256 switches
- Support various ring/chain topologies, including dynamic coupling ring& aggregation ring*
- Enhanced G.8032 ring configuration with ease
- Auto ring configuration(auto mode) for single ring
- Co-exist with RSTP on different ports
Aggregation ring for ring redundancy and bandwidth combination*
Dual DC input from 18V~57VDC, HV model with single 90~305VAC or 120~430VDC power input
Provides EFT protection ±4000 VDC for power line.
Supports ±6000 VDC Ethernet ESD protection
LACP load balancing to distribute the load*
Built-in RTC (Real Time Clock) to keep track of time
Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority
IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy
4K 802.1Q VLAN, Port based VLAN, GVRP**, QinQ*
Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaConfig**/ LantechTM InstaView**
DHCP server / client / Port&Vlan based DHCP distribution / DHCP Option 82 supported
Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
Bandwidth Control
- Ingress packet filter and egress rate limit
- Broadcast/multicast packet filter control
Relay alarm output system events
Miss-wiring avoidance
- LED indicator
- Email, traps, or SMS notification
Repowered auto ring restore
- Ensure the switches in a ring to survive after power breakout is back
- The status can be shown in NMS when each switch is back
TFTP/HTTP firmware upgrade; LantechTM InstaConfig** for multiple upgrade
System Event Log, SMTP Email alert, SMS mobile (text) and SNMP Trap for alarm support; 32 RMON counters
Security
- SSL/SSH/ACL L2&L3
- Port Security: MAC address entries/Filter/MAC-Port binding
- IP Security: IP address security management to prevent unauthorized intruder.
- Management access control with priority
- Login Security: IEEE802.1X/RADIUS
- HTTPS for secure access to the web interface
Static multicast forwarding forward reversed IGMP flow (MVR) with multicast packets binding with ports for IP surveillance application
Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring and for reversed multicast video flow
Multicast VLAN registration* for metro video
IGMPv1,v2,v3 with Query mode for multi media; GMRP**
Factory reset button to restore setting to factory default
Watchdog design to auto reboot switch CPU is found dead
Optional environmental monitoring for system input voltage, current, ambient temperature
Supports DIDO (Digital Input/Digital Output)
IP30 metal housing with DIN rail and Wall-mount** design

Spécificité

Hardware Specifications

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1X User Authentication (Radius) IEEE802.1p Class of Service IEEE802.1Q VLAN Tag
Switch Architecture	Back-plane (Switching Fabric): 24Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Ethernet / Gigabit Fiber port
CPU	Marvell 800Mhz
RAM	256M Byte
Flash	128M Byte
Mac Address	16K MAC address table
Jumbo frame	9KB on all ports
Connectors	10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function Mini-GBIC: 4 x 100/1000 SFP socket with DDM RS-232 connector: RJ-45 type Power & P-Fail connector: 1 x 6-pole terminal block DIDO : 1 x 6-pole terminal block
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-T: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)
Optical Cable	1.25Gbps: Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm) Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm) 125Mbps: Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm) Single mode: 0 to 30 km, 1310 nm (62.5/125 μm) WDM 1.25Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) WDM 125Mbps: Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
Protocol	CSMA/CD
LED	Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) Ethernet port: Link/Activity (Green), Speed (Green); Mini-GBIC: Link/Activity (Green)
DI/DO	2 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 2 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F(-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	Dual 18~57VDC (Standard model) Single 90~305VAC/120~430VDC (HV model)
Power Consumption	10W
Case Dimension	Metal case. IP-30, 74 (W) x 105 (D) x 152 (H) mm (Standard model) 74 (W) x 135 (D) x 152 (H) mm (HV model)
Weight	900 g
Installation	DIN Rail and Wall Mount** Design
EMI & EMS	FCC Class A, CE EN55022 Class A, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11
Stability Testing	IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
MTBF	NA
Warranty	5 years

Software Specifications

Management	SNMP v1 v2c, v3/ Web/Telnet/CLI
SNMP MIB	RFC 1215 Traps MIB, RFC 1213 MIBII RFC 1158 MIBII RFC 1157 SNMP MIB, RFC 1493 Bridge MIB, RFC 1573 IF MIB RFC 2674 VLAN MIB, Partial RFC 1643 EtherLike, Partial RFC 1757 RMON, RFC 2674 Q-Bridge MIB; Bridge MIB, RFC 2790 Host Resource MIB LLDP MIB* RSTP MIB* Private MIB
ITU G.8032	Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (basic mode) Support various ring/chain topologies Includes dynamic coupling ring & aggregation ring* Enhanced G.8032 ring configuration with ease Co-exist with RSTP on different ports
PTP v2	Support hardware-based IEEE1588 PTPv2 in 1μs, End to End (2-step) and Peer to Peer (2-step) modes in Transparent Clock, with 8 10/100/1000T and 4 100/1000 SFP
User friendly UI	Auto topology drawing Topology demo Auto configuration for G.8032(auto mode) for single ring DDM threshold monitoring with dB values*** Complete CLI for professional setting
Port Trunk with LACP	LACP Port Trunk: 8 Trunk groups/Maximum 8 trunk members Aggregation ring for ring redundancy and bandwidth combination*
LLDP	Supports LLDP to allow switch to advise its identification and capability on the LAN
CDP	Cisco Discovery Protocol for topology mapping
Environmental Monitoring**	System status for input voltage, current and ambient temperature to be shown in GUI and sent alerting if any abnormal status(-M models)
VLAN	Port Based VLAN IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096.) GVRP(256 groups)*, QinQ
IPv6/4	Present
Spanning Tree	Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree
Quality of Service	The quality of service determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points – DSCP
Class of Service	Support IEEE802.1p class of service, per port provides 8 priority queues
QoS by VLAN	Tagged QoS by VLAN for all devices in the network
IP Security	Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
Login Security	Supports IEEE802.1X Authentication/RADIUS
Port Mirror	Support 3 mirroring types: “RX, TX and Both packet”
Network Security	Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder. 802.1X access control for port based and MAC based authentication/MAC-Port binding Management access control with priority 256 Policy based Access Control List SSL/ SSH for Management HTTPS for secure access to the web interface TACACS+ for Authentication
IGMP	Support IGMP snooping v1,v2,v3; Supports IGMP static route; 256 multicast groups; IGMP router port ; IGMP query; GMRP**
MVR	Static multicast forwarding forward reversed IGMP flow (MVR) with multicast packets binding with ports for IP surveillance application
Bandwidth Control	Support ingress packet filter and egress packet limit. The egress rate control supports all of packet type. Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet. The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.
RTC	Built-in Real Time Clock to keep track of time always
Flow Control	Supports Flow Control for Full-duplex and Back Pressure for Half-duplex
System Log	Supports System log record and remote system log server
SMTP/Text SMS	Supports SMTP Server and 8 e-mail accounts for receiving event alert; can send SMS text alert via mobile
Relay Alarm	Provides one relay output for port breakdown, power fail and alarm. Alarm Relay current carry ability: 1A @ DC24V
Protection	Miss-wiring avoidance Repowered auto ring restore Loop protection
SNMP Trap	Up to 10 trap stations; trap types including: Device cold start Authorization failure Port link up/link down DI/DO open/close Typology change(ITU ring) PoE ping failure Power failure Environmental abnormal**
DHCP	Provide DHCP Client/ DHCP Server/DHCP Option 82/Port based&VLAN based DHCP distribution (DHCP relay agent)
Mac based DHCP Server	Assign IP address by Mac that can include dumb switch in DHCP network
DNS	Provide DNS client feature and support Primary and Secondary DNS server.
SNTP	Supports SNTP to synchronize system clock in Internet
Firmware Update	Supports TFTP firmware update, TFTP backup and restore; HTTP firmware upgrade; LantechTM InstaConfig** for multiple upgrade
Configuration upload and download	Supports text configuration file for system quick installation; Support factory reset button to restore all settings back to factory default
IfAlias	Each port allows an alphabetic string of 128-byte assigned as its own unique name via the SNMP or CLI interface

Future Release
Optional
Optional DDM SFP required

Numéro de référence

8350-806	IGS-3408DSFP	8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -20°C to 60°C; Dual 24/48VDC
8350-807	IGS-3408DSFP-E	8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -40°C to 75°C; Dual 24/48VDC
8350-808	IGS-3408DSFP-M	8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -20°C to 60°C; Environmental monitoring; Dual 24/48VDC
8350-809	IGS-3408DSFP-M-E	8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -40°C to 75°C; Environmental monitoring; Dual 24/48VDC
8350-853	IGS-3408DSFP-HV	8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -20°C to 60°C; Single 90~305VAC/120~430VDC
8350-854	IGS-3408DSFP-HV-E	8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -40°C to 75°C; Single 90~305VAC/120~430VDC
8350-8531	IGS-3408DSFP-HV-M	8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -20°C to 60°C; Environmental monitoring; Single 90~305VAC/120~430VDC
8350-8541	IGS-3408DSFP-HV-M-E	8 10/100/1000T + 4 100/1000M SFP L2+ PTP Managed Industrial Switch; -40°C to 75°C; Environmental monitoring; Single 90~305VAC/120~430VDC

OPTIONAL ACCESSORIES – DIN Rail Power

Model name	Description
AD1048-24FS	24VDC, 2A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 18 Watts at 75°C.)
AD1024-24F	24VDC, 1A, Wide AC Input, Convection Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 75°C, which means the output is 9 Watts at 75°C.)
AD1240-48S	48VDC, 5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
AD1120-48F	48VDC, 2.5A, Wide AC Input, Build-in fan Cooled, DIN Rail or Wall Mounted, RoHS, Operating Temp. -20°C~50°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)

Formation

Formation disponible sur la parametrisation des Switches L2+

Téléchargement

Brochure

Manuel utilisateur (Software)

Manuel utilisateur ( Hardware )

IGS-5408DSFP

8 10/100/1000T + 4 100/1000M SFP L2+ Industrial Managed Switch w/PTP V2

Support PTPv2 two-step transparent clock @ all ports
Enhanced G.8032 ring protection < 20ms with auto mode, enhanced mode, train mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP
Miss-wiring avoidance & Repowered auto ring restore (node failure protection)
User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82 for Port&VLAN based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, ACL, IPv6, SMS
Environmental Monitoring for temp., voltage & current**
USB slot for edited restoration and auto backup

Datasheet Hardware Manual Software Manual

Switch LANTECH : IPGS-5488MGSFP-8

Switch industriel Administrable :8*10/100/1000T PoE af/at + 8*100M/1G SFP + 4*1G/2.5G SFP w/ L2+ / G.8032 Ring & LTDP**; Alimentation : 12V/48V

OPTIONAL ACCESSORIES – DIN Rail Power for 802.3at Applications

OPTIONAL ACCESSORIES – Mini GBIC (SFP)

2* 10/100/1000T + 2 100/1000 SFP + 8 10/100/1000T IEC-61850-3 Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring & MMS, LTDP**, PTPv2

Hardware Specifications

Software Specifications

*Future Release **Optional ***Optional DDM SFP required

24 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet switch

Hardware Specifications

Software Specifications

*Future Release **Optional ***Optional DDM SFP required

OPTIONAL ACCESSORIES – Power for System

OPTIONAL ACCESSORIES – Mini GBIC (SFP)

16 10/100TX + 4 10/100/1000T X-coded L2+ 8 PoE at/af Industrial Managed Switch w/ enhanced G.8032 Ring & PTP

OVERVIEW

Lantech IPES-5416T-8-X (IP67/IP54) features hardware-based PTP IEEE1588 v2 two-step function which can allow 4 10/100/1000T uplinks to synchronize the network with precise accuracy.

QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

The built-in environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email and SMS alert when abnormal.

FEATURES

16 10/100TX d-coded + 4 10/100/1000T x-coded w/8 PoE 802.3af/at Injectors Industrial Managed IP67 M12 Switch (Total 20 Ports Switch)

EN45545-2 Fire & Smoke, EN50155 and EN61373 shock/vibration verification

IEEE802.3at/af feeding power up to 30W per PoE port at 45~56VDC at port 1-8

PoE management including PoE detection and scheduling for PD (power devices)

12V model can accept dual 12V power input and boost to 54V for PoE 802.3at/af max 80W budget

72V model can accept dual 50.4~90V power input and feed 48V for PoE at/af at max 80W budget

110V model can accept dual 43V~137.5V inputs and feed 48V for PoE at/af at max 80W budget

IEEE 1588 PTP v2 two-step at 4 Giga ports

Back-plane (Switching Fabric): 11.2Gbps

16K MAC address table

10KB Jumbo frame supported on all ports

User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting

Enhanced G.8032 Ring protection in 20ms < 256 switches

Support various ring/chain topologies, including train dynamic coupling ring

Enhanced G.8032 ring configuration with ease

Auto ring configuration(auto mode) for single ring

Co-exist with RSTP on different ports

Provides EFT protection ±2000 VDC for power line.

Supports ±6000 VDC Ethernet ESD protection

LACP load balancing to distribute the load*

Built-in RTC (Real Time Clock) to keep track of time

Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority

IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy

4K 802.1Q VLAN, Port based VLAN, GVRP**, QinQ*

Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaConfig**/ LantechTM InstaView**

DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server for Port&Vlan based DHCP distribution

Mac based DHCP server to assign IP address that includes dumb switches in DHCP network

Bandwidth Control

Ingress packet filter and egress rate limit

Broadcast/multicast packet filter control

Relay alarm output system events

Miss-wiring avoidance

LED indicator

Email, traps, or SMS notification

Repowered auto ring restore

Ensure the switches in a ring to survive after power breakout is back

The status can be shown in NMS when each switch is back

TFTP/HTTP firmware upgrade; LantechTM InstaConfig** for multiple upgrade

System Event Log, SMTP Email alert, SMS mobile (text) and SNMP Trap for alarm support; 32 RMON counters

Security

SSL/SSH/INGRESS/EGRESS ACL L2/L3

Port Security: MAC address entries/Filter/MAC-Port binding

IP Security: IP address security management to prevent unauthorized intruder.

Management access control with priority

Login Security: IEEE802.1X/RADIUS

HTTPS for secure access to the web interface

Static multicast forwarding forward reversed IGMP flow (MVR) with multicast packets binding with ports for IP surveillance application

Multicast static route for non- IGMP camera to prevent flooding; IGMP router port to assign query in ring and for reversed multicast video flow

Multicast VLAN registration* for metro video

IGMPv1,v2,v3 with Query mode for multi media; GMRP**

N-key** configurator for firmware upgrade, auto/editable configuration back up and restoration

Watchdog design to auto reboot switch CPU is found dead

Built-in environmental monitoring for system input voltage, current, ambient temperature

Supports DIDO (Digital Input/Digital Output)

IP67 aluminum housing with wall mount and DIN rail** design; IP54 aluminum housing with wall mount design

Bypass protection** – Bypass failed switch caused by power failure of switch to protect network intactness

With Bypass Protection

Without Bypass Protection

Optional accessories

SPECIFICATIONS

Switch industriel Administrable :810/100/1000T PoE af/at + 8100M/1G SFP + 4*1G/2.5G SFP w/ L2+ / G.8032 Ring & LTDP**; Alimentation : 12V/48V

Future Release
Optional
Optional DDM SFP required

Future Release
Optional
Optional DDM SFP required

Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console/ LantechTM InstaConfig/ LantechTM InstaView

*Future release
**Optional
