Ateva Technologies

TELTONIKA

FMB110

GNSS/GSM/Bluetooth tracker avec antennes GNSS/GSM internes

FMB110: Tracker GNSS/GSM/Bluetooth avec antennes internes. Pas de batterie

Général

FMB110 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB110 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.

New GNSS module

New generation GSM/GNSS module

With new integrated GSM/GNSS module, your tracking experience will be better than ever before. Even higher sensitivity, faster than ever cold start and almost instant hot start ensures that your fleet will be tracked precisely.

Bluetooth icon

Bluetooth

Integrated Bluetooth 4.0 LE allows usage of  various wireless sensors and  grants compatibility with previously available Bluetooth V3.0 features like device configuration, firmware update, headset support. Retrieve temperature and humidity information from Bluetooth sensors without the need of wired connection – reduce installation costs. Save on fuel by reducing aggressive driving, increase your driver safety and reduce the number of driving-related incidents with Android application BTAPP.

Various vehicle CAN data

Various vehicle CAN data

With additional Teltonika Vehicle CAN adapters you will be able to acquire CAN data from any kind of transport such as light vehicles, trucks, buses, agriculture transport, and special transport. Supported vehicles list contains more than 1800 models.

1-Wire

1-Wire

1-wire protocol support enables you to identify your drivers and connect up to 4 temperature sensors. According to iButton or RFID ID you can prevent unauthorized access to your fleet and temperature sensors allows you to monitor your cargo.

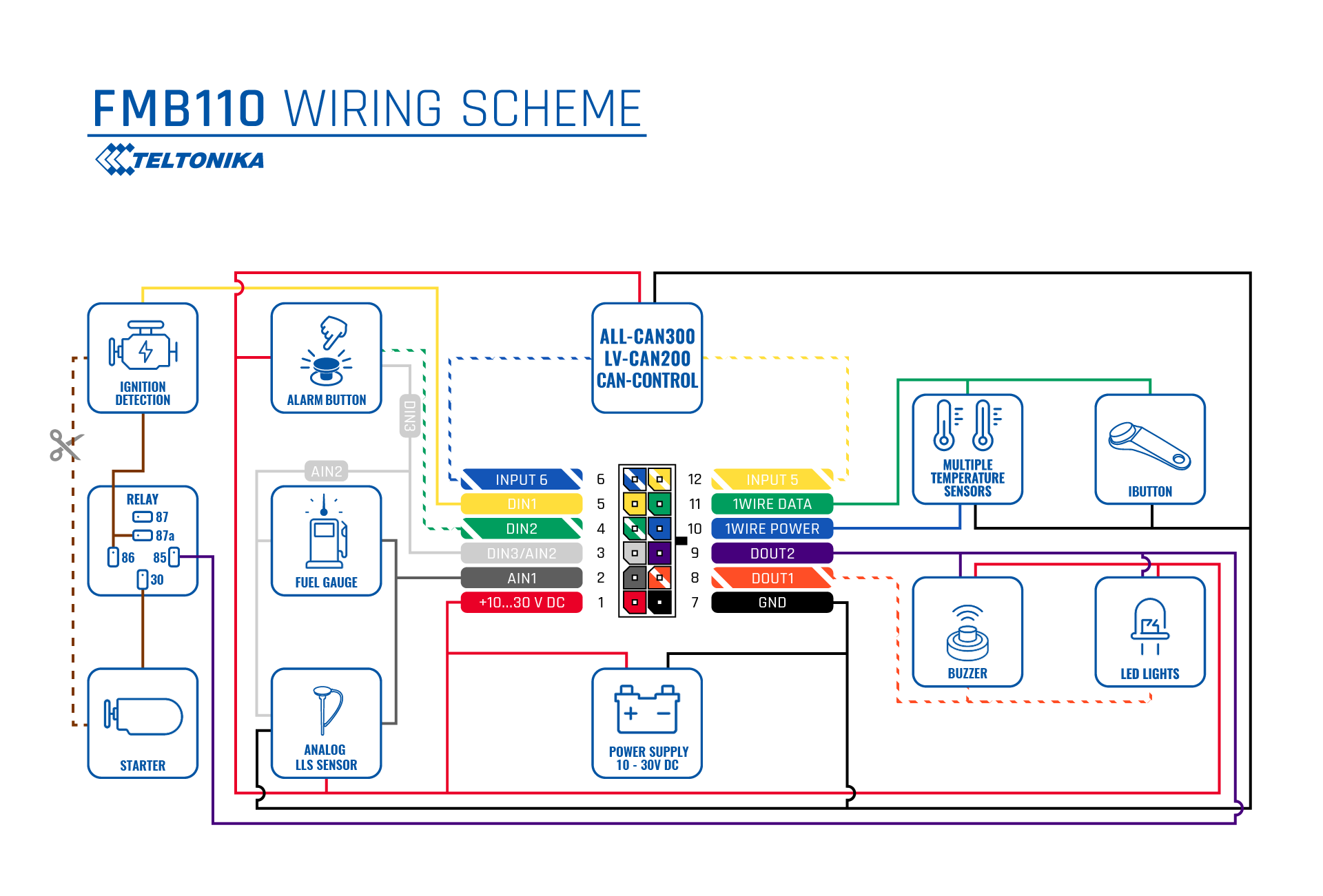

FMB110 scheme

Available accessories

AKF301

AKF301

ALL-CAN300 Teltonika

ALL-CAN300

Bluetooth sensor

Bluetooth Temperature and Humidity sensor

LV-CAN200

LV-CAN200

Details techniques

GSM:

  • Quad-band 900/1800 MHz; 850/1900 MHz
  • GPRS Multi-Slot Class 12 (up to 240 kbps)
  • GPRS Mobile Station Class B
  • SMS (text/data)
  • Dual-SIM (1 x micro SIM card, 1 x eSIM)

Bluetooth:

  • Bluetooth specification V4.0
  • Bluetooth transceiver fully compliant with Bluetooth specification V4.0 for external peripherals:
    • Voice calls over Bluetooth
    • Configuration via Bluetooth
    • OBDII Bluetooth dongle
    • Various BLE sensors support Temperature, Humidity etc.

 GNSS:

  • Tracking: 33/ 99 acquisition channels
  • -165 dBM sensitivity
  • Hot start <1s
  • Warm Start < 25s
  • Cold start < 35s
  • NMEA-183 protocol
  • GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
  • Accuracy < 3m

INTERFACE:

  • 2 Digital Inputs (1 reserved for Ignition Status Monitoring)
  • 1 Analog Input (10V or 30V range)
  • 1 configurable input DIN3 or AIN2
  • 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
  • 1-Wire® (iButton® , RFID, temperature sensors)
  • Built in accelerometer
  • Power supply (+10…+30) V DC
  • Internal high gain GSM antenna
  • Internal high gain GNSS antenna
  • Dimensions: L(65mm) x W(56,6mm) x H(18,9mm)
  • 2 Status LEDs
  • Micro USB Port

References

FMB110BBV801 Contenu du package “Standard”

  • 10 pcs FMB110 tracker
  • 10 pcs Input/output power supply cable (0.9 m)

FMB110BB4R01 Contenu du package

  • FMB110 tracker
  • Input/output power supply cable (0.9 m)

FMB110BB7201: Contenu du package

  • FMB110 tracker
  • Input/output power supply cable (0.9 m)
  • micro USB-USB cable (0.8 m)

RUT-955

LTE ( 4G ) ( Download jusqu’à : 100Mbps / Upload jusqu’à : 50Mbps) Routeur avec double carte SIM, avec wifi et 4 ports Ethernet, I/O, RS232, RS485 et GPS

Général

RUT955 : hautement sécurisé et performant, ce routeur LTE possède des sorties I/O, GPS et RS232/RS485 pour applications professionnelles.

Ce routeur délivre de hautes performances, pour des missions de communication critiques et localisation GPS. Le RUT-955 est équipé de systemes de connectivité redondant, via double carte SIM.  Antennes externes de type SMA, permet d’utiliser le type d’Antennes souahité.

RUT955 Schema

Details téchniques

TECHNOLOGYHARDWAREFIRMWARE
LANRS232 iRemote configuration over SMS
4G (LTE) – Up to 100 Mbps iRS485 iBridge mode
3G – Up to 42 Mbps iMicro SD iAutomatic and manual operator selection
GNSS i2x SIM Card (Dual-SIM) iStatic routes i
WiFi – Up to 300 Mbps i3x LAN 10/100Mbps Ethernet ports iPPPoE
GPRS i1x WAN 10/100Mbps Ethernet ports iNTP i
SMS iIEEE 802.11b/g/n WiFi standards iWireless Hotspot
 Durable aluminum housing iWireless Client
 0 – 3V digital input iWireless AP
 0 – 30V digital galvanically isolated input iPing reboot i
 0 – 24V analog input iPeriodic reboot i
 30V, 250mA digital open collector output iReal-time graphs
 40V, 4A SPST relay output iBackup WAN i
 USB A socket for external devices iMobile Traffic counter
 2 pin industrial DC power socket iConnection status overview bar
 Power over Ethernet (not compliant with IEEE 802.3af – 2003) iConfiguration backup/restore
 I/O connectorVRRP
 Mobile antenna type – 2 x SMAIPsec
 WiFi antenna type – 2 x RP-SMAGRE Tunnel
 GNNS antenna type – 1 x SMAOpenVPN
 Input voltage range – 9-30 VDCPPTP i
 Operating temperature range – -40°C to 75° CL2TP i
 Storage temperature range – -45ºC to 80º CSNMP i
 Power consumption – < 7WSNMP Trap i
 Mounting options – DIN Rail, WallSend/receive SMS
 LED indication – 1x bi-color connection status, 5x connection strength, 4x LAN status, 1x PowerStatus via SMS i
 SMS reboot i
 3G/4G enable/disable via SMS i
 Wireless on/off via SMS i
 OpenVPN on/off via SMS i
 Web Filter i
 Mobile on Demand i
 Mobile Data Limit i
 Configuration Profiles i
 Event logging i
 QoS i
 Restore Point i
 Call Utilities i
 SIM switch i
 FOTA (Firmware Over The Air) i
 Event reporting (via Email/SMS) i
 Integrated speed test i
 Network Scanner with Topology display i
 Disable Roaming i
 SMS gateway i
 OSPF i
 Access control safety i
 SIM Idle protection i
 VLAN i
 CLI i
 Firewall i
 IP/MAC filter i
 TR-069 i
 DHCP server i
 Dynamic DNS i
 RMS support


Avantages produit

  • LTE up to 150 Mbps DL and 50 Mbps UL
  • DC-HSPA+ up to 42 Mbps DL and 5.73 Mbps UL
  • Multiple LTE FDD bands
  • IEEE 802.11b/g/n WiFi with 2×2 MIMO up to 300 Mbps
  • OpenVPN, PPTP, L2TP, IPsec, VRRP, GRE Tunnel
  • SMS Control, WiFi Hotspot, Mobile on Demand, Backup WAN
  • Input Triggers, Samba Share, GPS
  • Four Ethernet ports
  • 3 x input, 2 x output ports
  • MicroSD card slot
  • 4 pin industrial socket for 2/4 wire RS485
  • DB9 socket for full-featured RS232
  • USB type-A socket for external devices
  • Durable aluminum housing
  • External antennas
  • Dual SIM
  • Dual FW image

Référence

Reférence :

  • RUT-955-H ( Europe )
  • RUT-955-J ( USA /Canada )

Formation

Training on demand

RUT-900

RUT-900

RUT-900 : Routeur 3G Industriel, VPN, Firewall et double cartes SIM

Routeur 3G (21Mbps/5.76Mbps), double carte SIM, avc Wifi ett 4 ports Ethernet ( 100Mb/s)

Description

Le RUT-900, est un routeur 3G,  d’une grande fiabilité, et sécurisé, dédié aux applications industriels, Ce routeur delivre des performances exceptionnelles, pour des missions Telecom critiques, Le routeur 3G  RUT-900, est équipé avec une double carte SIM, pour les situations de redondance.. Des connecteurs SMA externes, permettent l’utilisation d’ antennes aux choix.

Détails techniques

TECHNOLOGY

  • 3G –Up to 21 Mbps i
  • 2G –Up to 236.8 kbps i
  • Wi-Fi –Up to 300 Mbps i
  • Ethernet –4 ports i
  • SMS i

HARDWARE

  • Mobile antenna type –2 x SMA
  • Wi-Fi antenna type –2 x RP-SMA
  • Input voltage –9 – 30 VDC
  • SIM card slots –2
  • Operating temperature range –-40 °C to 75 °C
  • Storage temperature range –-45 °C to 80 °C
  • Power consumption –< 7W
  • Mounting options –Din rail
  • LED indication –Power, status, signal, ethernet

FIRMWARE

  • emote configuration over SMS i
  • Bridge mode i
  • Automatic and manual operator selection i
  • Static routes i
  • PPPoE i
  • NTP i
  • Wireless Hotspot i
  • Wireless Client i
  • Wireless AP i
  • Ping reboot i
  • Periodic reboot i
  • Realtime graphs i
  • Backup WAN i
  • Mobile Traffic counter i
  • Connection status overview bar i
  • Configuration backup/restore i
  • VRRP i
  • IPSec i
  • GRE Tunnel i
  • OpenVPN i
  • PPTP i
  • L2TP i
  • SNMP i
  • SNMP trap i
  • Send/receive SMS i
  • Status via SMS i
  • SMS reboot i
  • 3G/4G enable/disable via SMS i
  • Wireless on/off via SMS i
  • OpenVPN ON and OFF via SMS i
  • Web Filter i
  • Mobile on Demand i
  • Mobile Data Limit i
  • Configuration Profiles i
  • Event logging i
  • QoS i
  • Restore point i
  • Call Utilities i
  • SIM switch i
  • FOTA (Firmware Over The Air) i
  • Event reporting (via Email/SMS) i
  • Integrated speed test i
  • Network Scanner with Topology display i
  • Disable Roaming i
  • SMS gateway i
  • OSPF i
  • Access control safety i
  • SIM Idle protection i
  • VLAN i
  • CLI i
  • Firewall i
  • IP/MAC filter i
  • TR-069 i
  • DHCP server i
  • Dynamic DNS i
  • RMS support i

Numéro de référence

  • HSDPA 21 Mbps DL and 5.76 Mbps UL
  • IEEE 802.11b/g/n WiFi with 2×2 MIMO up to 300 Mbps
  • OpenVPN, PPTP, L2TP, IPsec, VRRP, GRE Tunnel
  • SMS Control, WiFi Hotspot, Mobile on Demand, Backup WAN
  • Four Ethernet ports
  • Durable aluminum housing
  • External antennas
  • Dual SIM
  • Dual FW image

Fonctionalité

  • HSDPA 21 Mbps DL and 5.76 Mbps UL
  • IEEE 802.11b/g/n WiFi with 2×2 MIMO up to 300 Mbps
  • OpenVPN, PPTP, L2TP, IPsec, VRRP, GRE Tunnel
  • SMS Control, WiFi Hotspot, Mobile on Demand, Backup WAN
  • Four Ethernet ports
  • Durable aluminum housing
  • External antennas
  • Dual SIM
  • Dual FW image
