TCP/IP-H1-OPC-Server

All-in-one OPC Server With Maximum Protocol Scope Via TCP/IP and H1 (Included in Former INAT Multi-Protocol OPC Server)

The TCP/IP-H1 OPC Server offers uniform access to the leading controllers of the companies Siemens, Rockwell Automation, Schneider Electric or Mitsubishi. This high-performance OPC Server is easy to configure and offers a wide variety of diagnostic capabilities.

general

Everything at a Glance

Functionality based on customer requirements
Ethernet protocol dependent on controllers and field devices
Reliable communication with control system

Application Area

Heterogeneous networks with controllers and devices from a wide variety of different manufacturers
Support of standard TCP/IP, Sinec H1, various serial protocols
Increased investment protection for integration of existing systems

Features

High-performance protocol for transmission of large amounts of data via OPC
No limit to number of connected controllers and variables
High degree of reliability for all OPC Clients with OPC interface V1.x and V2.05
Easy to commission via symbolic addressing (Alias Browsing)
Easy symbol import directly from STEP 7 project
Increased availability due to continuous line monitoring and extensive communication diagnostics
SNMP access to devices of different vendors via MIB Import and SNMP Browse

détails technique

Supported Controllers	Softing and Siemens CPs, Allen Bradley CLX, SLC and PLC 5 controllers, Mitsubishi Melsec-Q vontrollers, various Modbus TCP interfaces, SNMP devices

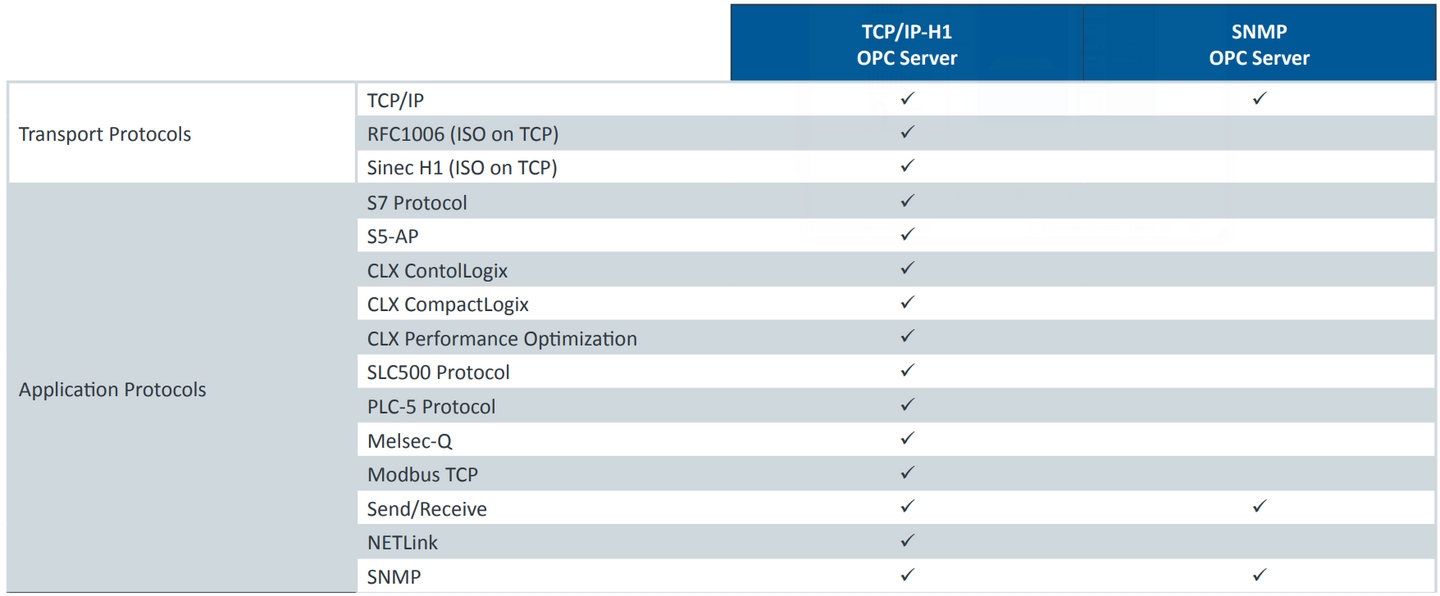

Supported Protocols	See table
Supported Operating Systems	Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Demo Version	Full TCP/IP-H1 OPC Server functionality, time-limited to 72 hours

téléchargements

Downloads

Drivers & Software
- OPC Server-TCP / IP-H1 V5.00 demo version (72 hours runtime) and full version for license holders version 5.00
- OPC License Manager V4
Manuals & Documentation
- OPC Server Manual E-032012-01
- OPC Competence Brochure
Data Sheets
- TCP/IP-H1 OPC Server Data Sheet

Références

ATV-LRL-DY-131001	TCP/IP-H1 OPC Server, single license
ATV-UAC-DD-0100	USB hardware for replacing the software key required for activating a Softing product

Additional Products and Services

ATV-GPL-CS-191000

echolink S7-compact

Scope of Delivery

Software	TCP/IP-H1 OPC Server on CD-ROM
Documentation	Online Help in English and German
