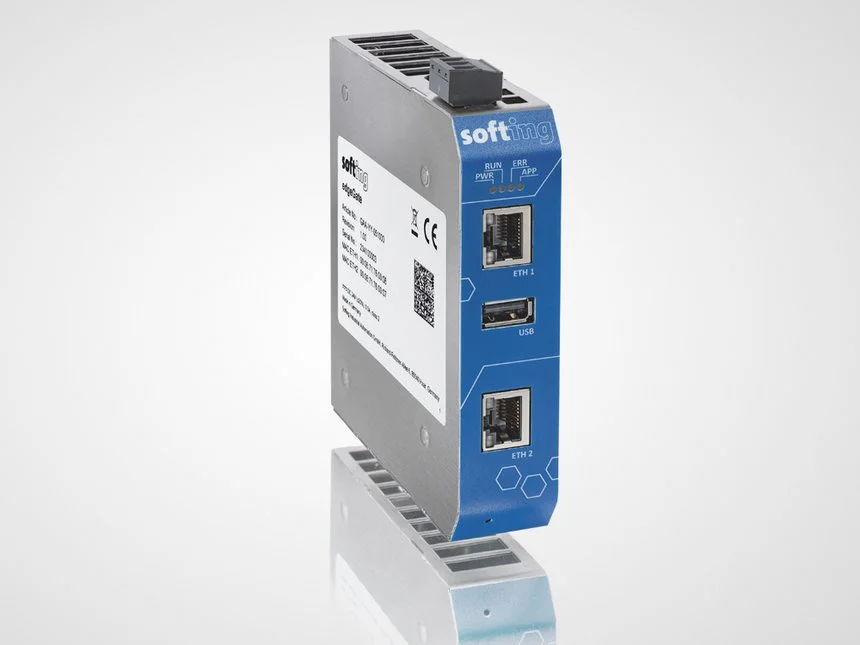

EdgeGate Connector – Industry 4.0 Multiprotocol Gateway
OPC UA Server & MQTT Publisher Gateway for PLC Controllers and CNC Machines

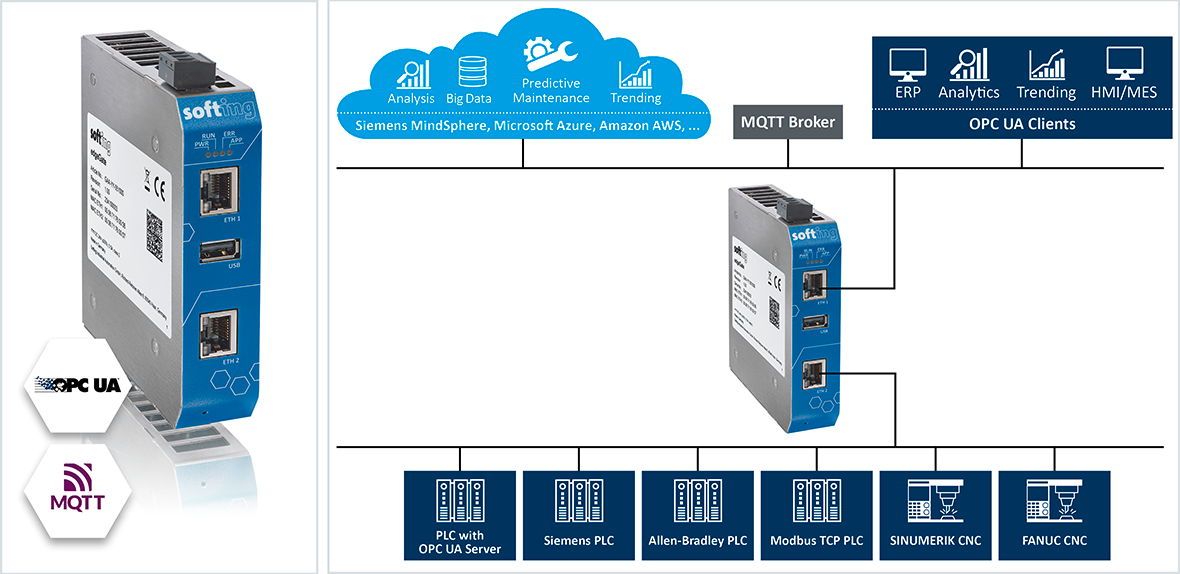

edgeGate makes data integration easier than ever before. The gateway supports the connection to PLC & CNC Controllers and uses the OPC UA standard for a simple and secure data integration into higher-level management systems, such as ERP, MES, or SCADA for new and existing plants.
In addition, edgeGate also offers MQTT Publisher/Subscriber functionality, enabling direct integration of machine data into private or public IoT cloud applications on the IT side. The generic MQTT implementation supports the use of many different cloud providers. Like the OPC UA standard, MQTT also supports various security mechanisms such as encrypted connections, certificates, and user authentication, thus contributing to a high level of data security.

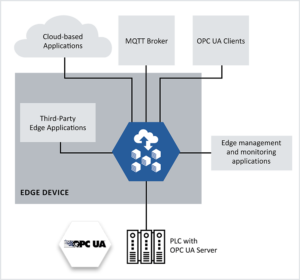

To optimize security and performance in task-oriented environments, the edgeGate device comes equipped with three key applications: general device management, license management, and a communication interface. With this functionality, edgeGate is a compact, secure, future-oriented, and proven gateway for data integration.
Access to existing PLC and CNC controller data
- Supports up to 20 connections for access to Simatic Siemens PLC, Allen-Bradley PLC, Siemens Sinumerik controllers, Fanuc CNC controller, Modbus TCP controller, or OPC UA machine data.
- Easy local and global access to field data and routing through firewalls.
- Protect investment through simple retrofit upgrades, as well as for modern controllers’ integration, without require modifying the running configuration in them.
- No PLC programming or dedicated PC required.
Standardize and simplify the machine data integration
- Integration of higher-level management systems like ERP, MES, or SCADA using integrated OPC UA Server providing open, platform-independent, and market-proven communication.
- Simple data transmission to an MQTT broker using the MQTT publisher functionality for local or cloud-based solutions.
- Separate Web interface for gateway configuration and data access application to avoid misconfigurations.
Industry-proven security
- Physically separated interfaces for OT and IT networks add security layer to the plant.
- Supporting security standards such as SSL/TLS and X.509 certificates.
- Support of all security functions of OPC UA and MQTT.
- Filtered access depending on IP address (Whitelist / Blacklist for OPC UA endpoints).
| Hardware | Processor | Broadcom BCM2711 quad-core ARM Cortex-A72 (ARM v8) 64-bit SoC @ 1,5GHz |
| Status LEDs (Gateway) | PWR (Power Supply), RUN (Running), ERR (Error), APP (Application) | |
| Real-Time Clock | Real-Time clock with buffering, setting the time via browser or by NTP server (buffer time depends on conditions such as ambient temperature and duration of use) | |
| Interfaces | Ethernet | 2x IEEE 802.3 10BASE-T/100BASE-TX/1000BASE-T, Connector: RJ45 |
| USB | 1x USB 2.0, Connector: Type A | |
| HDMI | 1x HDMI 2.0, Connector: Type A | |
| Supported Communication Protocols | Northbound |
|
| Southbound |
| |
| Physical Properties | Dimensions (H x W x D) | 120 mm x 28 mm x 110 mm |
| Weight | Approx. 420g | |
| Power Supply | 24Vdc ±20%, SELV/PELV supply mandatory, typical input current 500mA (max. 1A, considering rush-in current at switch-on) | |
| Typical Power Loss | 9.5W | |
| Operating Temperature | -20°C … +60°C | |
| Storage Temperature | -40°C … +85°C | |
| Relative Humidity | 5% … 95%, non-condensing | |
| Cooling | Convection, no fan | |
| Mounting | DIN rail 35mm | |
| Protection Class | IP20 | |
| Conformity/Standards | CE |
|
| FCC | FCC 47 CFR Part 15B and ICES-003 – Class B | |
| VCCI | Class B Information Technology Equipment (ITE) set forth in the Agreement of Voluntary Control Council for Interference by Information Technology Equipment (VCCI), April 2015 |
- DataSheet
- User Manual
- Info divers
| GAA-YY-051000 | edgeGate |
| LRL-XX-161001 | edgeConnection – Perpetual License* |
| * edgeConnection License already include 1 Year Software Upgrade license (LMA-XX-161001) | |
