dataFEED uaGate 840D
Connection

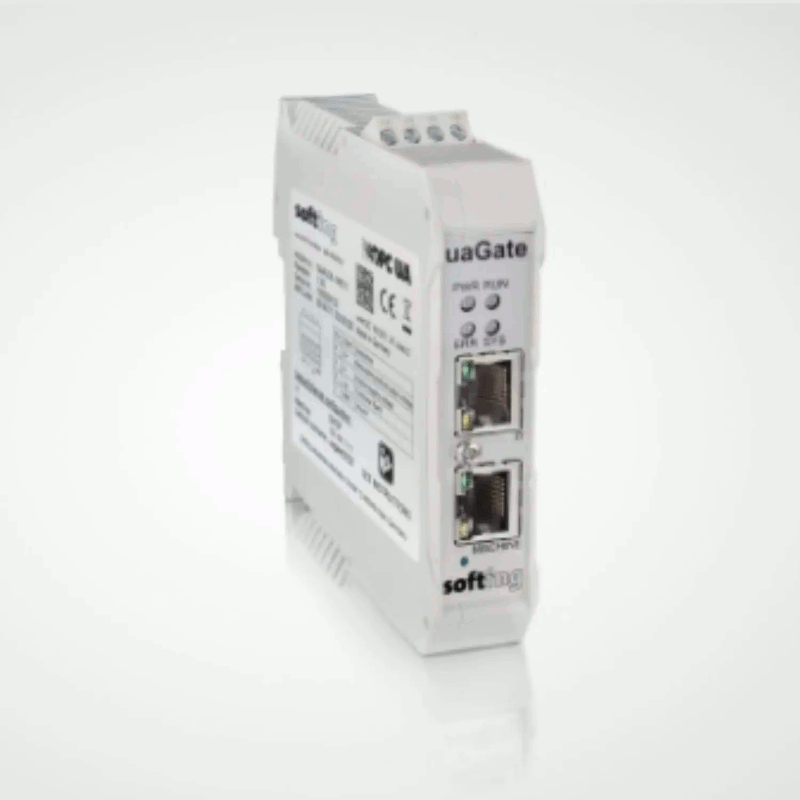

uaGate 840D – Gateway for SINUMERIK 840D Solution. Addition of an OPC UA server for the integration of data to an MES
HS Code: 85176200
Weight: 0.400 kg
Description
OPC UA SERVER GATEWAY FOR SIEMENS SINUMERIK 840D SL/PL CONTROLLERS
This gateway allows the reading of all data from the SINUMERIK 840D machine tool. It can also access the NC parts with its axis, tool, program and data, as well as specific alarms. In addition, a connection to the SIMATIC Siemens S7 can be established. The data from the 2 connections is available via the OPC UA and the MQTT interface and can be used for “Industry 4.0 Applications”
With the uaGate 840D gateway, important spindle and axis data such as torque and power consumption can be read and reused for many applications. currently used tool are accessible. For example, this data is available for condition monitoring, predictive maintenance, for data logging, or for analysis tasks, such as spindle and axis monitoring. The gateway can also be used to acquire data from older SINUMERIK 840D controllers. Thanks to the preconfigured data symbol file for the standard use case based on one channel, three axes and one spindle, the user does not need any specific SINUMERIK know-how for reading the data.
The product can simply be mounted next to the SINUMERIK NCU on a DIN rail and requires a 24 VDC power supply. It has two independent Ethernet interfaces, one addressing the machine and the other the computer network. Between these, the gateway acts as a firewall. Setup is just a few clicks away using any web browser and the built-in web server
Access to Data in PLC, NC and Drives Area of Siemens SINUMERIK 840D sl/pl
- Access to many different Siemens SINUMERIK 840D Solution Line and Power Line controllers
- Data integration into higher level management tools like ERP, MES or SCADA systems
- Embedded OPC UA Server providing open, platform-independent communication
- Access to NC area containing axis, tool, program, drive data and specific alarms
- Use of data for analysis, condition monitoring, predictive maintenance or data logging purposes
- No additional Siemens licenses necessary
- Initial configuration without requiring PLC or NC programming
Easy Configuration
- Usage of predefined symbol files for standard configurations for easy comissioning
- Upload of AWL file created from user-defined NCVar Selector symbol files for NCK connection
- Easy symbol import from SIMATIC STEP 7/TIA Portal projects for S7 PLC connection
- Gateway configuration using integrated web server and standard web browser
Industry-proven Security
- Physically separated Ethernet interfaces protecting SINUMERIK from unauthorized access via IT network
- Support of security standards like SSL/TLS, X.509 certificates and user authentication for OPC UA and MQTT communication
| uaGate 840D | ||
| Hardware | Processor | Altera Cyclone V SoC with Dual-core ARM Cortex-A9 |
| Connectors | 2 x IEEE 802.3 100BASE-TX/10BASE-T (independent interfaces) | |
| Status LEDs | PWR (power supply), RUN (running), ERR (error), SYS (configuration) | |
| Dimensions (H x W x D) | 100 mm x 22.5 mm x 105 mm | |
| Power Supply | 18 VDC … 32 VDC, SELV/PELV supply mandatory Typically 200 mA, maximum 1 A at switch-on | |
| Operating Temperature, Horizontal DIN Rail Installation | -40 °C … 50 °C (0 mm minimum distance) -40 °C … 55 °C (22.5 mm minimum distance) | |
| Operating Temperature, Vertical DIN Rail Installation | -40 °C … 35 °C (0 mm minimum distance) -40 °C … 40 °C (22.5 mm minimum distance) | |
| Storage Temperature | -40 °C … 85 °C | |
| Relative Humidity | 10 % … 90 %, non-condensing | |
| Weight | About 0.2 kg | |
| Mounting | DIN Rail (35 mm) | |
| Housing | Phoenix Contact ME MAX | |
| Protection Class | IP20 | |
| Software | Protocols | SIMATIC S7, RFC1006, SINUMERIK, OPC UA (Server, 20,000 items in total), MQTT (Publisher, up to 1,000 topics) |
| Supported Controllers | Siemens SINUMERIK 840D Solution Line, software version V2.7 and higher Siemens SINUMERIK 840D Power Line, software version V5.3 and higher | |
| Supported Engineering Tools | Siemens NCVar Selector | |
| Conformity | Emission | EC Directive 2004/108/EC “Electromagnetic Compatibility”, EN 55011, Group 1, Class A EC Directive 2004/108/EC “Electromagnetic Compatibility”, EN 55022, Class A EC Directive 2004/108/EC “Electromagnetic Compatibility”, EN 61000, Part 6-4 FCC CFR45, Part 15 Section 15.107 and 15.109 (Class A), VCCI Class A Information Technology Equipment 2002 |
| Immunity | EC Directive 2004/108/EC “Electromagnetic Compatibility”, EN 61000, Part 6-2 | |
| Certifications | CE, FCC, RoHS |
Data Sheets & Brochures
Drivers & Software
Manuals & Documentation
Certificates
Order Numbers
| GAA-YX-145144 | uaGate 840D |
Scope of Delivery
| Hardware | uaGate 840D |
| Software | Tool for configuration over integrated web interface |
| Documentation | Quick Startup Guide (printed documentation) |
Additional Products and Services
| 6FC5851-1XC45-4YA8 | SINUMERIK 840D sl CNC software and SINUMERIK Operate, toolbox including NCVar Selector (please order directly from Siemens) |
| GPL-CS-191000 | echolink S7-compact (PROFIBUS/MPI adapter for communication with SINUMERIK 840D pl) |
Performance
- La Passerelle uaGate 840D, peut collecter jusqu’à 20000 variables
- Fréquence d’échantillonage : dépends de nombreux parametres. On peut donner une approximation entre [ 15 ms – 80ms ]
